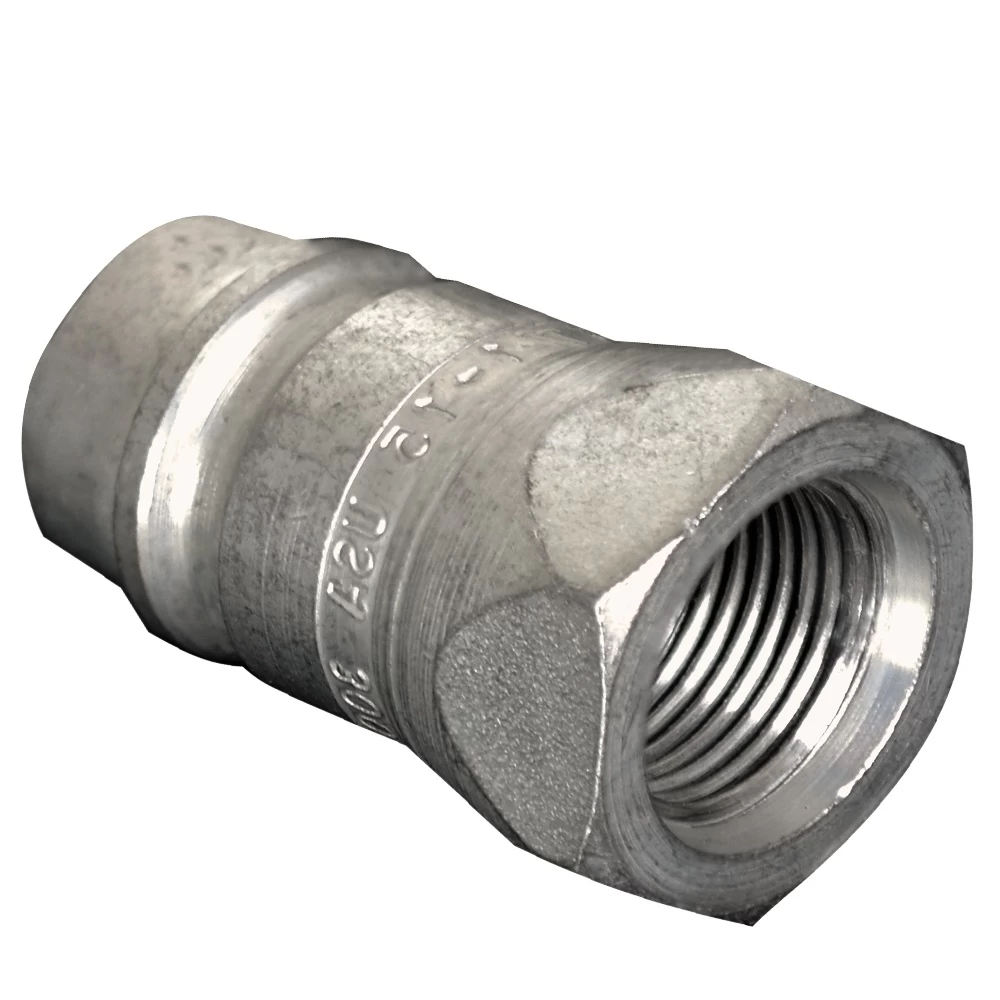

TIP MALE 3/4″ FEMALE

This connect under pressure hydraulic plug meets the dimensional requirements of ISO 5675, and contains a rugged ball valve. Critical parts are hardened for long service life and it is interchangeable with Parker/Pioneer 8200 Series. The first end is an ISO male tip – ball valve and the second end is a female O-ring boss with 16 threads per inch. The maximum PSI is 3000lbs and the maximum temperature is 250F.
