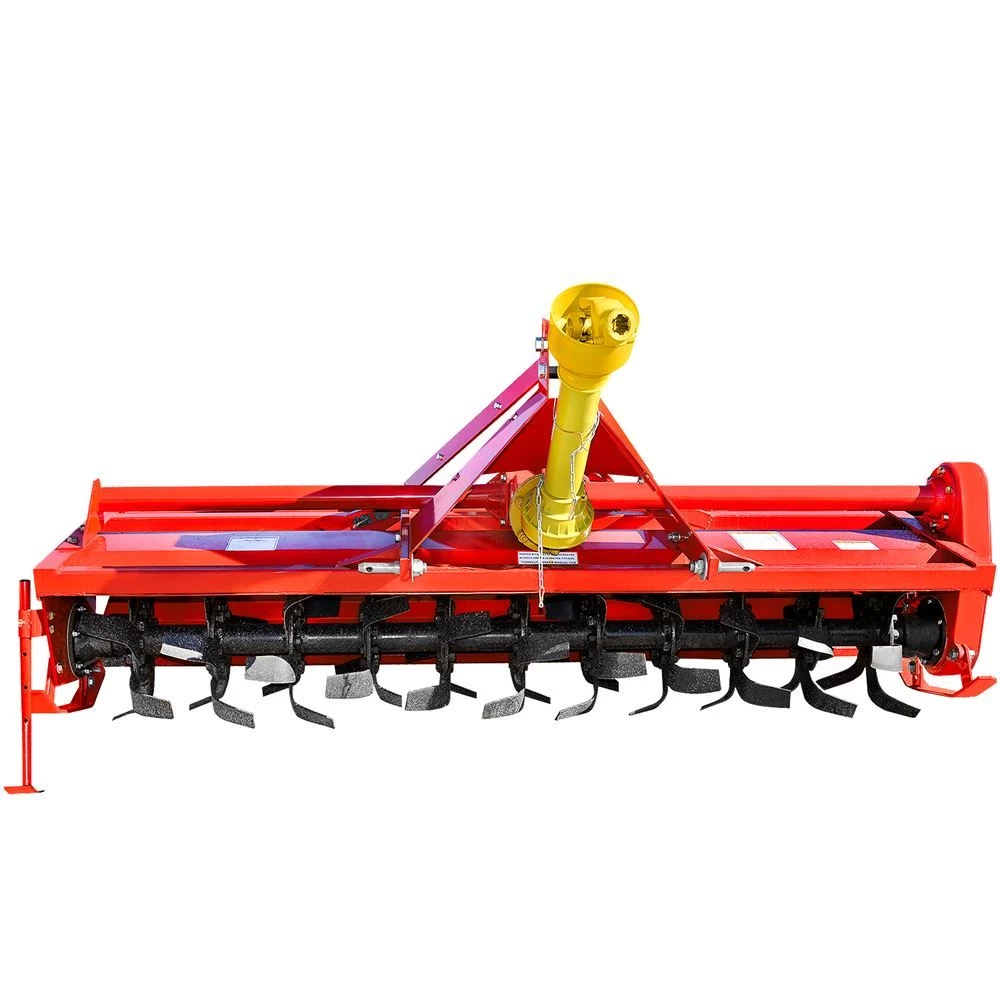

Tillovator, 7 Ft. Gear Driven

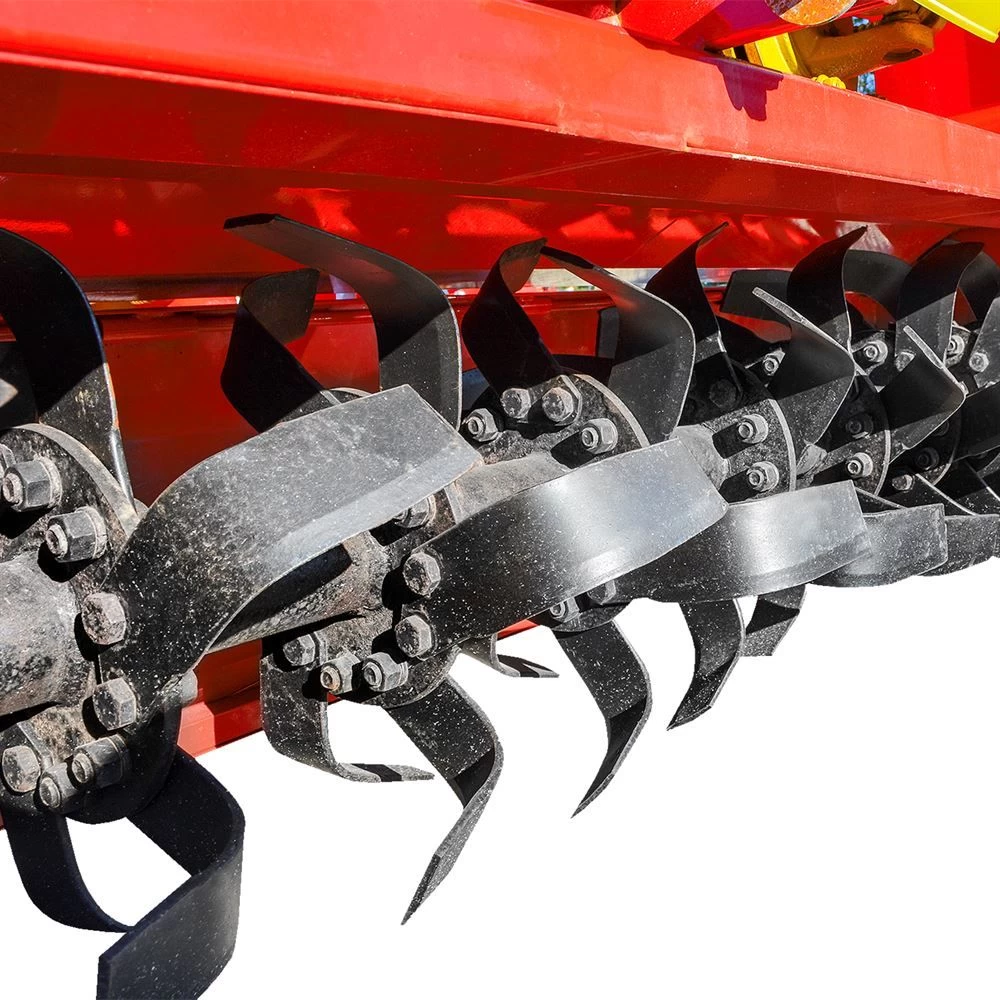

Cultivate large plots of land with this 3-point rotary tiller. With a working width of 7 feet, this tiller is operable at a horsepower range of 45 to 60, with a maximum RPM of 540. It connects to category 1 hitches, and transfers power through a PTO shaft measuring 22 inches in length. Other features include a gearbox with slip clutch protection, and a rotor drive that is controlled by a rotor drive system. This rotary tiller has 66 rotating tines across 11 flanges that work to cut through, dig, and turn, the soil during the field preparation process. All nuts and bolts to secure the tines are included.

Specifications

• Tillovator
• Working width: 7 ft.
• Will till to a depth of 6 to 7 inches
• Horsepower: 45-60
• Maximum RPM: 540
• 775 lbs.
• Category 1 hitch
• 22 In. PTO shaft
• PTO Category: 4
• Rotor drive: All gear driven
• Gear box protection: Slip clutch
• When more gear oil is needed, use ASC #26940 – GL5-85W-140
• Flanges: 11
• Tines per flange: 6
• 66 tines in total
• Hardware included

Replacement Parts

• 78796 – Gearbox Assembly
• 78808 – Seal Lip
• 78809 – Double Bearing
• 78810 – Gear – 35 teeth
• 78811 – Gear – 16 teeth
• 78812 – Gear – 28 teeth
• 78813 – Gasket for Side Gearbox Assembly
• 78818 – Output Gasket – 0.8mm
• 78819 – Output Gasket – 0.5mm
• 78820 – Input Gasket – 9.4mm
• 78821 – Input Gasket – 0.2mm
• 78822 – Input Seal Double Lip
• 78823 – Sealed Ball Bearing
• 78824 – Ball Bearing
• 78825 – Ball Bearing
• 78826 – Ball Bearing
• 78827 – Pinion Shaft
• 78828 – Output Gear – 19 Teeth
• 78797 – Gearbox Assembly

We also carry a variety of other tillovator sizes, as well as King Kutter and Caroni brands.

Till soil, mix fertilizer, landscape and more with this 7 ft. rotary tiller. Built with a category 1 attachment, it connects to tractors with 3-point hitches. Overall this Tillovator has 66 tines for tilling, and is powered by an all gear driven rotor drive.
