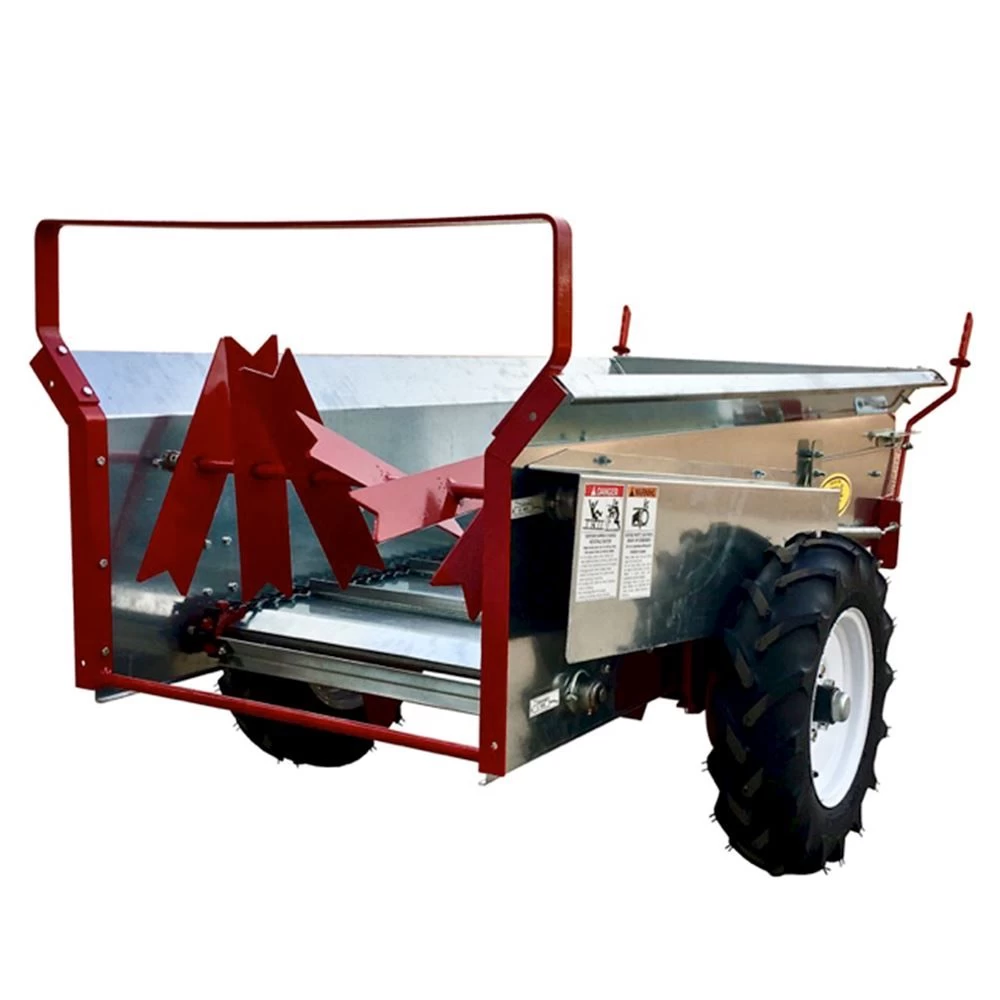

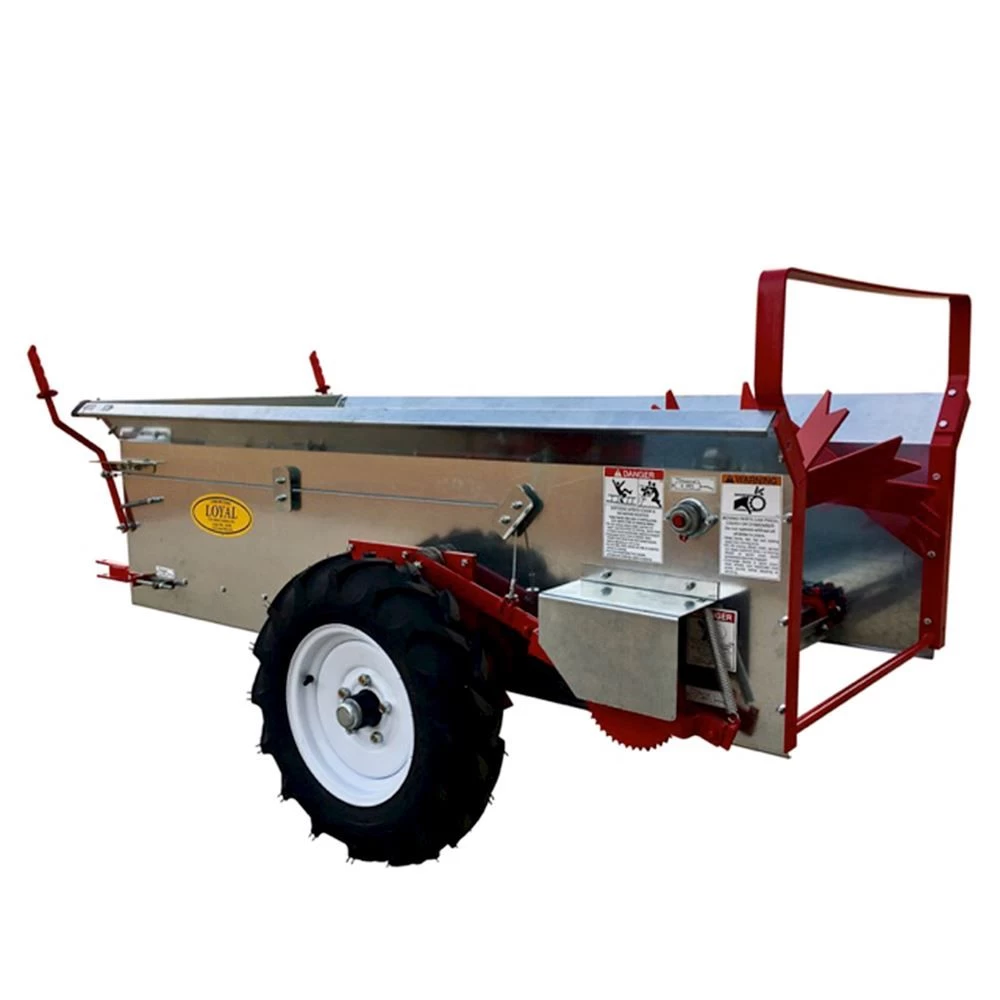

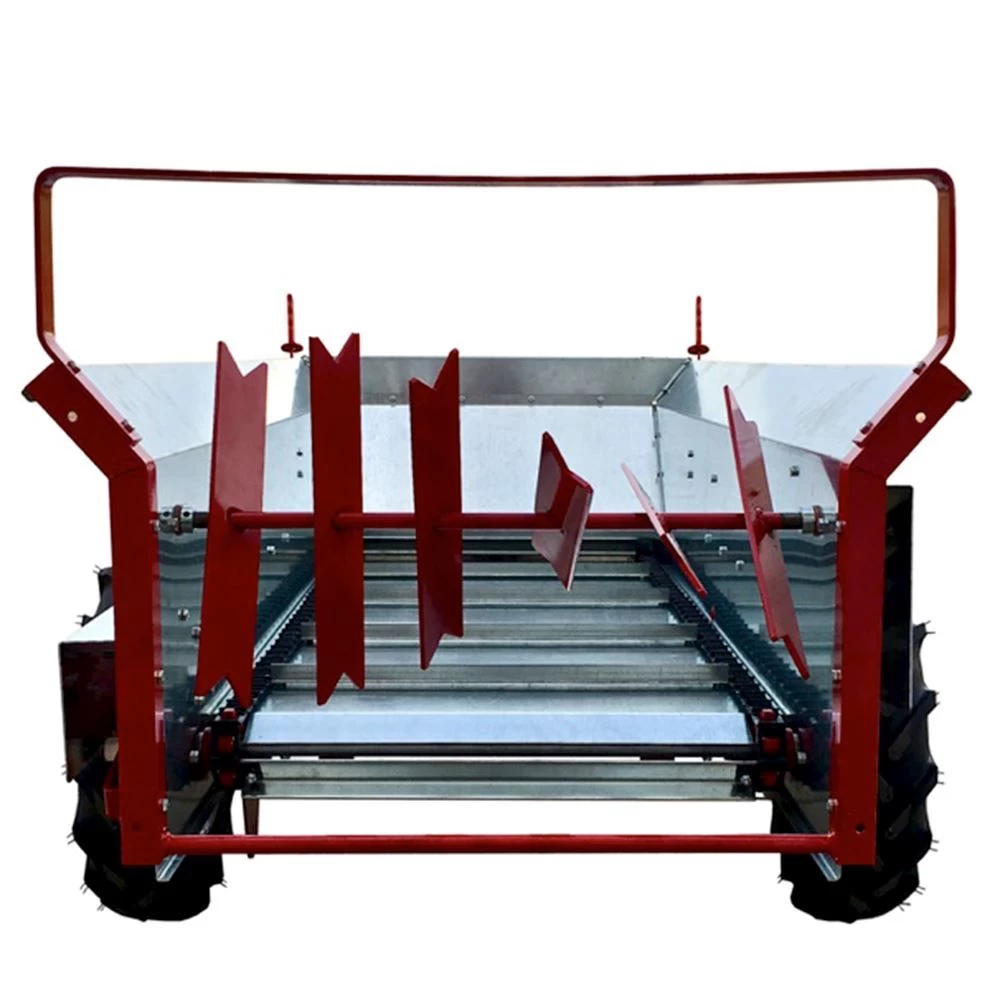

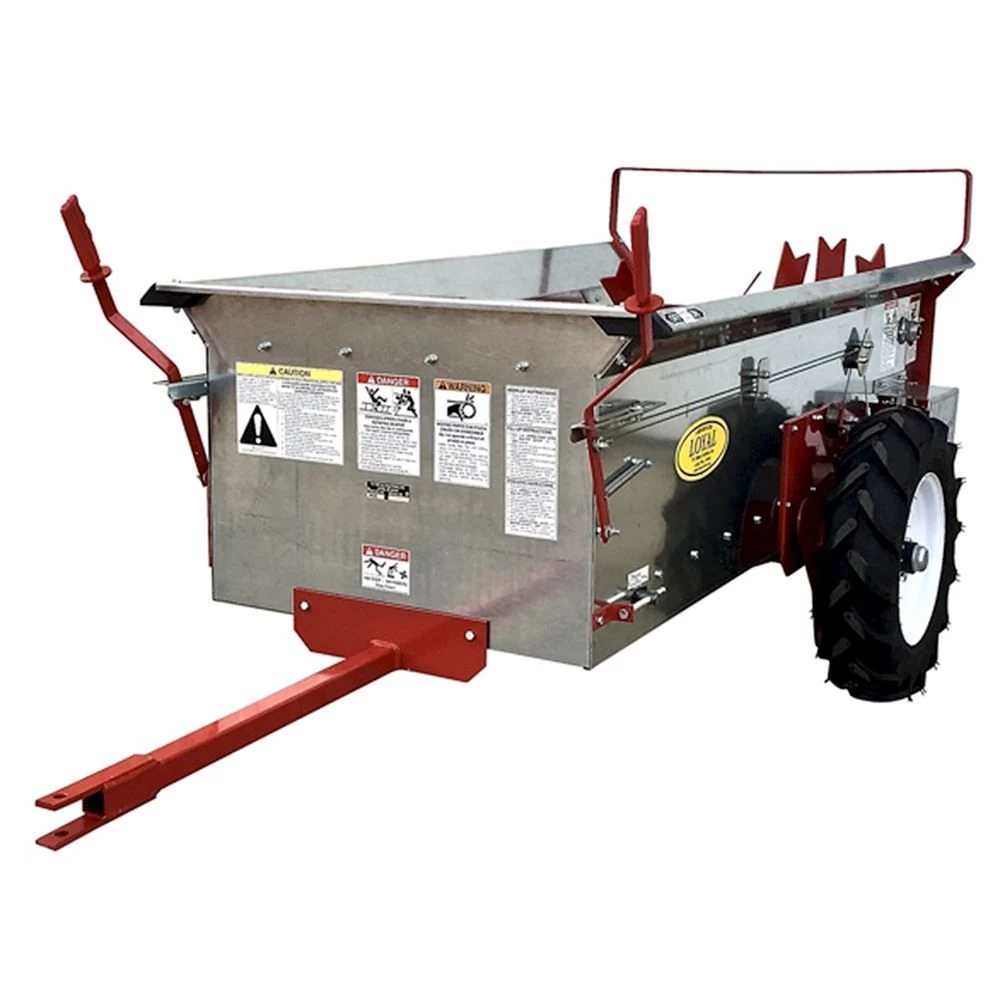

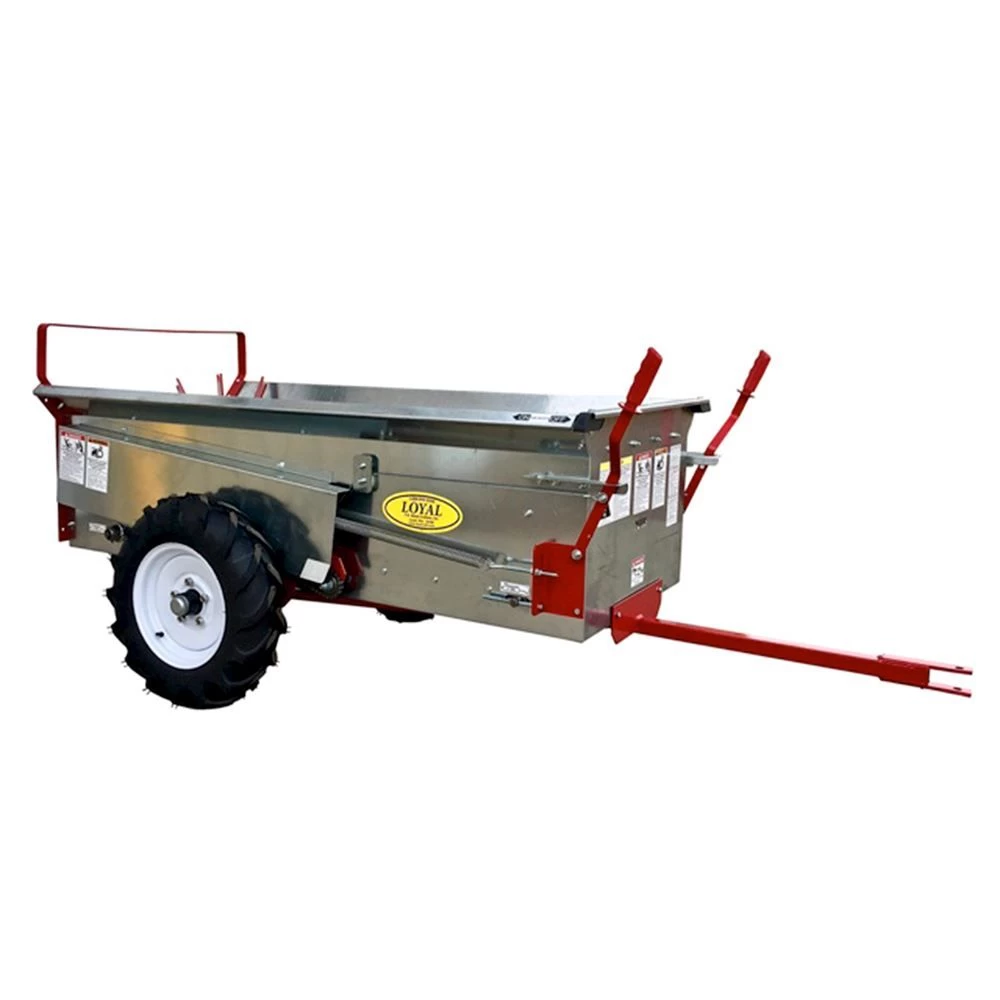

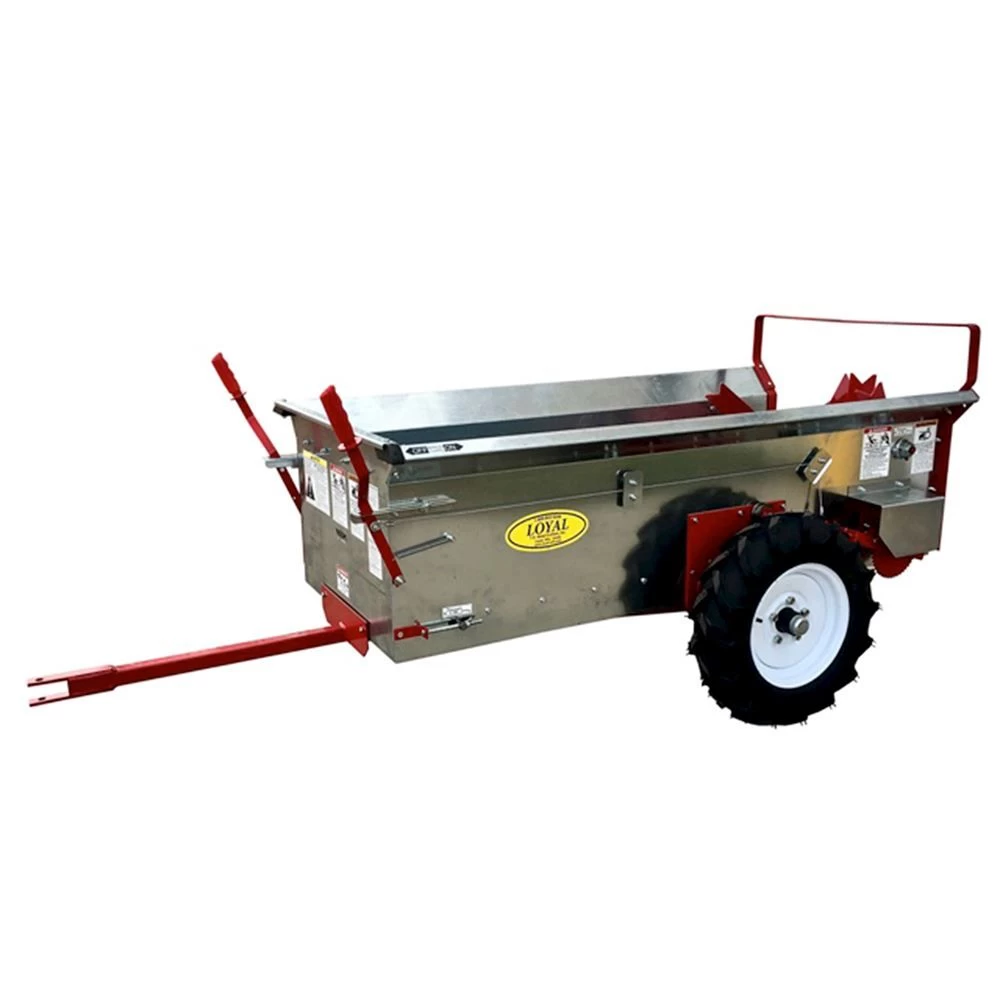

T.R. Metalcrafters Ms23b 28.6 Cu Ft Pull Type Manure Spreader

The MS23B Manure Spreader is made with ‘Bear-claw’ beaters that shred and spread all types of manure including that mixed with straw or hay. The 46-1/2 inch wide spreader can be placed right at the stall so loading is quick and easy. This spreader is also good for grass clippings and compost. The apron chain is ratchet driven by one wheel while the beaters are chain driven by the opposite wheel. The controls are easily accessible at the front of the spreader.

• The apron chain is ratchet-driven by one wheel; beater is chain-driven by opposite wheel so there are no belts to slip.
• The ‘Bear-claw’ beaters can shred and spread all types of manure (including that mixed with straw or hay), plus shavings, grass clippings and compost
• Controls are up front for the apron chain and beater so it is easy to operate.
• Well balanced; can be moved by hand.
• Size makes is easy to hold a load from one to six stalls.
• The box is well constructed with 14 gauge galvanized steel for rugged use.
• The A-frame and tongue are made with 1-1/2″ angle iron
• Overall dimensions are 101 inch length by 46-1/2 inch width by 32-1/4 inch height
• Box dimensions are 70-1/4 inch length by 36-1/2 inch width (flared at top) by 16-1/2 inch height
• Capacity is 23 bushels or 28.62 cubic feet.
• weight 385 pounds

The T.R. Metalcrafters MS23B Manure Spreader is designed to distribute all types of manure for use as organic fertilizer in gardens, fields or pastures. The clevis-type hitch allows the unit to be pulled by a tractor, ATV, or 10HP lawn tractor.
