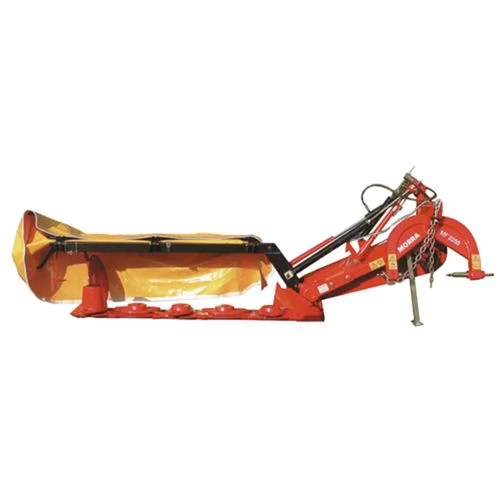

Morra MF2260 3-Point Disc Mower

The Morra Disc Mower is a tough mower designed to handle the toughest conditions. It can tackle even tall wet grass without stalling. Its quick clip design has a high work speed, as well as a safety kickback guard, a hydraulic vertical lift, and a float system that allows the disc mower to contour to the ground up to 40 degrees. You can easily access the main drive gear and bearing assembly.

This quick clip disc mower features 6 elliptical discs with 2 blades per disc and lateral circular conveyor disc. The cutting width is 7.87 feet. It attaches right to a three-point hitch and works perfectly on tractors with 45 HP. It can be connected to a large tractor with the adjustable drawbar’s connection pins. The PTO has a speed of 540 RPM and the disc mower weighs 1146 lbs. When not in use, its durable plastic-coated cover can be folded and put away.

The cutting bar on the Morra Disc Mower has a special reinforcing profile with extra reinforcement in the gearbox zone. To provide for safety, this quick clip equipment has a safety release to protect against any impact with large obstacles. It also comes with a driveline with a free wheel, a long set of knives, a short set of knives, and a sprung suspension to reduce the load bearing on the ground.

This trustworthy agricultural mower is designed to get the job done. It’s easy to handle, and it’s powerful. Use it on any size land, from a small to a large farm. It can handle even tough conditions, giving you an attractive regular cut.

Specifications:
• Can Handle Tough Conditions Including Tall Wet Grass
• PTO Shaft
• Safety Kickback Guard
• Weight: 1,146 lbs.
• Poly Coated Canvas Guard
• Hydraulic Vertical Lift
• High Work Speed
• Float System Allows Ground Contour Up To 40 Degrees
• Replacement belts (require 4) use ASC # 21036
• Easy Access To Main Drive Gear And Bearing Assembly
• Number Of Discs: 6
• Connects To A 3-Point Hitch
• Model Number: MF2260
• Working Width: 7.87 Ft.
• Blades Per Disc: 2
• Disc RPM @ 540: 3035
• Minimum HP Required: 46
• Maximum Hydraulic Pressure: 2325 Lbs.
• Uses Belt 21036
• Ships Fully Assembled
• Replacement hydraulic cylinder use 48038
• Use ASC # 71428 for replacement PTO shaft
• PTO gearbox 90W oil use ASC # 16323
• Cutting bar oil AW150 use ASC # 79821

Here are the seals that are needed for the cutter bar:

• Qty. (24) Seal # 008122 – ASC # 48087 – Seal For Morra or 2150
• Qty. (1) Seal # 485042 – ASC # 39525 – O-Ring Type Seal
• Qty. (6) Seal # 485041 – ASC # 48069 – Support O-Ring
• Qty. (24) Seal # 485027 – ASC # 57761 – O-Ring MF22
• Qty. (12) Bushing # 008082 – ASC # 44540 – Bushing

Replacement Blades

• Qty. (6) required 35173 – Cutter Blade Morra, Left Hand
• Qty. (6) required 35174 – Cutter Blade Morra, Right Hand

The Morra Disc Mower features a compact design that offers excellent penetration without dragging. The Quick Clip Mower’s PTO Shaft has an automatic safety clutch. The mowing drive is provided by four ‘V’ belts with a pendulum type belt tensioner. The hydraulic lift in the on-road position has an automatic safety lock that can be operated from the tractor. More specific details are provided in the following text.
