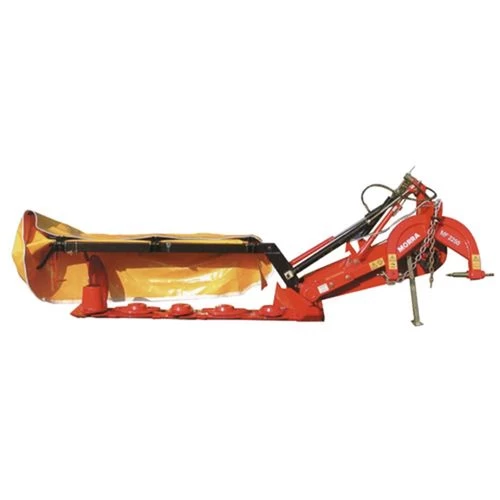

Morra Disc Mower, 5 Disc, MF 2250, 6.7 Ft.

The Morra 3-Point 5 Disc Mower, MF 2250, performs well even in the most difficult situations. It can mow through long hay and uneven terrain without dragging. The quick clip agricultural mower comes complete with a safety kickback guard and a hydraulic vertical lift. Its specialized float system allows the disc mower to contour itself to the land up to 40 degrees. This mower has a cutting width of 6.7 feet.

This disc mower features 5 elliptical discs. Each of the 5 discs has two blades, and it also features a lateral circular conveyor disc. This model works on tractors with engines up to 40 HP. The PTO speed is 540 RPM, and the hay mower weighs 1,080 pounds.

The Morra Disc Mower has a special reinforcing profile with extra reinforcement in the gearbox zone. It also has a safety release to protect against any impact with large obstacles. The quick clip mower also features a driveline with a free wheel, and two sets of knives (a short set and a long set). In addition, its sprung suspension reduces the agricultural mower’s load bearing on the ground. For convenient maintenance, the main drive gear and bearing assembly are easily accessible.

This long-lasting agricultural mower will work hard and take care of all of your heavy farming needs. It’s reliable and designed with safety in mind. You can use it on your small, medium, or your large farms under even difficult conditions.

Specifications:
• Morra, MF 2250
• Weight: 1,080 lbs.
• 5 Disc hay mower
• PTO shaft included
• Safety kickback guard
• Poly coated canvas guard
• Hydraulic vertical lift
• Replacement belts (require 4) use ASC # 21036
• High work speed
• Float system allows ground contour up to 40 degrees
• Easy access to main drive gear and bearing assembly
• 5 elliptical discs
• Working width: 6.7 ft.
• Blades per disc: 2
• PTO speed: 540 RPM
• Minimum 40 HP required
• Ships fully assembled
• For replacement hydraulic cylinder use 48037
• PTO gearbox 90W oil use ASC # 16323
• Use ASC # 71428 for replacement PTO shaft
• Cutting bar oil AW150 use ASC # 79821

Here are the seals that are needed for the cutter bar:

• Qty. (22) Seal # 008122 – ASC # 48087 – Seal For Morra or 2150
• Qty. (1) Seal # 485042 – ASC # 39525 – O-Ring Type Seal
• Qty. (5) Seal # 485041 – ASC # 48069 – Support O-Ring
• Qty. (20) Seal # 485027 – ASC # 57761 – O-Ring MF22
• Qty. (11) Bushing # 008082 – ASC # 44540 – Bushing

Replacement Blades

• Qty. (4) required 35173 – Cutter Blade Morra, Left Hand
• Qty. (6) required 35174 – Cutter Blade Morra, Right Hand

Morra’s MF 2250 is a 5 disc mower that is perfect for cutting hay. The cutter bar with 5 discs runs low to the ground to make the most of your crop. This rugged disc mower can handle even the toughest conditions without dragging or stalling. The quick clip mower offers excellent penetration, has a high work speed, a hydraulic lift, a safety kickback guard, and a working width of 6.7 feet. The mowing drive is provided by four ‘V’ belts with a pendulum type belt tensioner. In the on-road position, the automatic safety lock on the hydraulic lift can be operated from the tractor.
