Keulavator Frame, 3-Point Cultivator Frame, Cat. 1

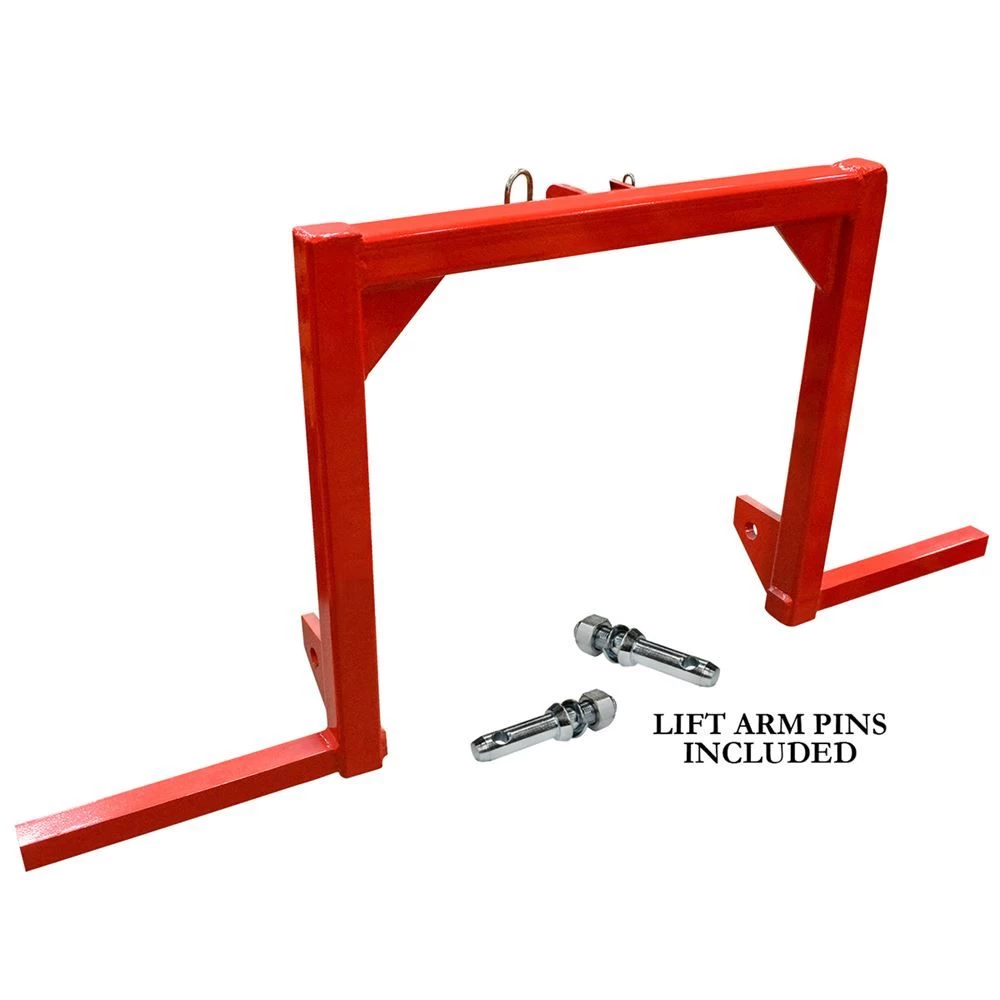

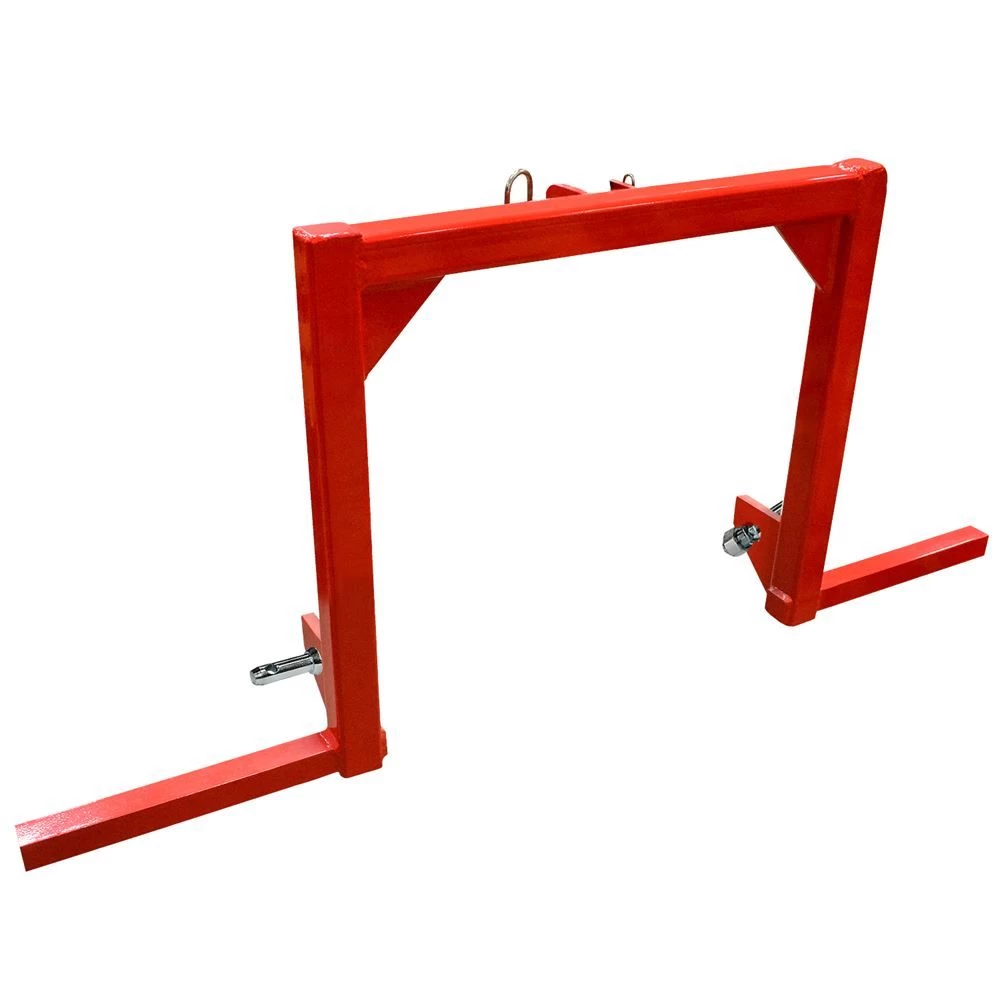

The Keulavator™ frame, sold only at Agri Supply®, is a 3-point tractor attachment that can be customized to shape, ridge, bed and help cultivate your garden. This frame is constructed of sturdy tubular steel with solid welds for durability. The Keulavator frame has category 1 lift arms and two tool bars that are 15-3/8 inches long. The tool bars will accommodate IHC-style wedge clamps and bolts. Based on your bedding needs, clamp assemblies can easily be adjusted for a minimum row width of 31 inches to a maximum row width 52 inches. Please view the attachments below.

Specifications:
• For explanation, see video below
• Keulavator Frame
• Frame only
• 3-point cultivator attachment
• Lift arms: Category 1
• Not compatible with Quick Hitches
• Comes with 2 pins 105549
• Outside to outside dimensions: 56 in.
• Tool bars: 1-3/8 in. diameter x 15-3/8 in. long
• Tool bars accept IHC style wedge clamps and bolts

Also available at Agri Supply®, are the attachments you need to build your custom cultivator. Each attachment is sold separately.

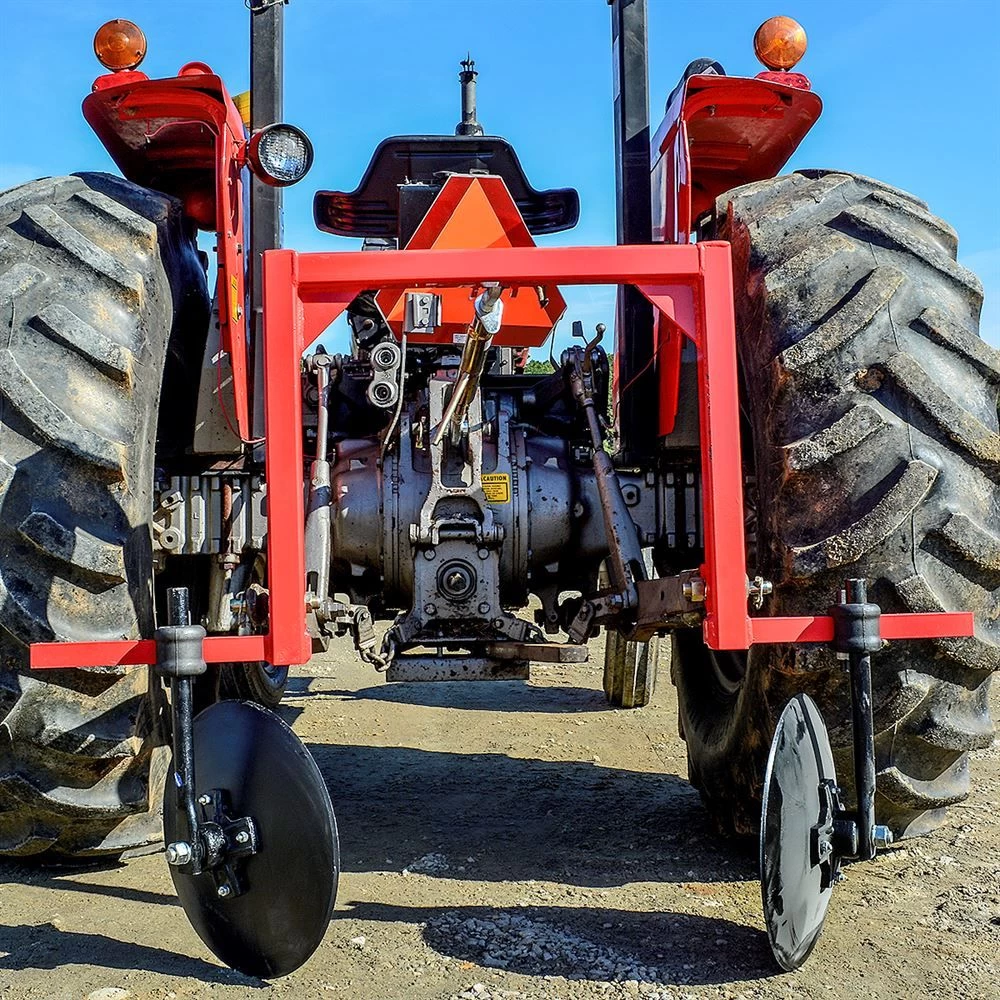

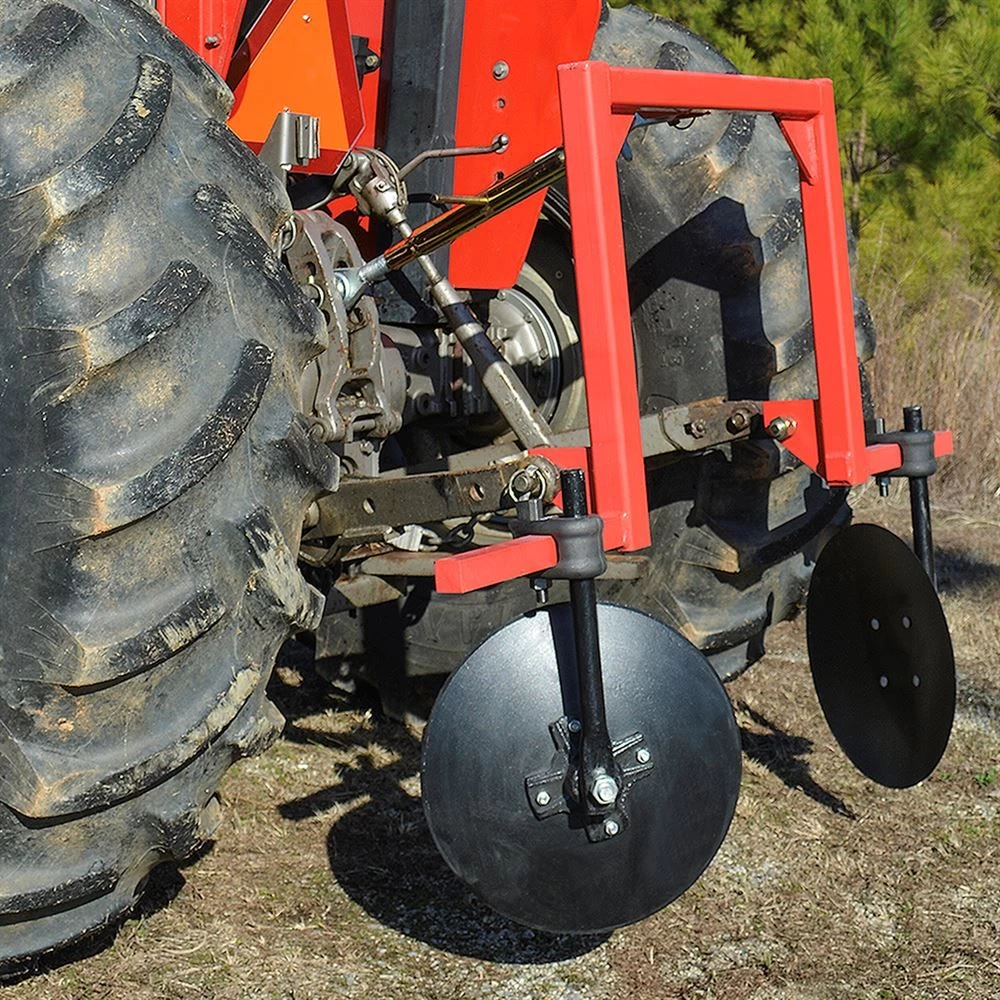

Disc Hiller Attachments:

• IHC style wedge clamp, ASC #109931(2)
• IHC style wedge bolt and nut, ASC #107357 (2)
• 16 in. disc hiller with a 16 in. shank, ASC #11677 (2)

Sweep Attachments:

• **NEW** in the year 2022, consider the #123027 Rear Shank Kit that will allow you to do 2 things in one pass or continue with the traditional style from years past as shown below.
• For touch up paint, use 49244 – MF Red Spray Paint
• IHC style wedge clamp, ASC #109931 (2)
• IHC style wedge bolt and nut, ASC #107357 (2)
• Cultivator shank, ASC #38854 (2)
• 16 Inch cultivator sweeps, ASC #15355 (2)
• Cultivator washers, 10 pcs., ASC #13086 (1)
• Plow point bolts and nuts, 6 pack, ASC #32647 (1)
• For other sweep sizes, please click here

Spider Gang Attachments:

• Wedge clamp with set screws, ASC #60878 (2)
• IHC style wedge bolt and nut, ASC #107357 (2)
• Cultivator shank, ASC #83749 (2)
• 4 Gang 14-1/2 in. left-hand spider assembly, ASC #49441 (1)
• 4 Gang 14-1/2 in. right-hand spider assembly, ASC #49442 (1)

Enjoy practicing with your Keulavator. The Spider Gang attachments, angles, and rate of speed determine the amount of soil displacement. Have fun and figure out your settings.

Check out more information about the Keulavator™ cultivator frame in our blog post.

Use the Keulavator® to help prepare your garden beds for planting. With a variety of options and adjustments, the Keulavator® is an affordable beginning to your harvest. This is the frame only.
