Grizzly 10′ Heavy Duty 3-Point Rotary Mower, Lift-Type, 125 HP Gearbox

This mower is designed to work with 42-52 horsepower tractors and has dual spindles with two free-swinging blades that reduce the shock of impact when a stationary object is contracted. CHAINS NOT INCLUDED. Can be ordered direct ship from the vendor through us. The PTO Shaft that is included is a length to fit a wide variety of tractors, and possible that it is too long for your application.  If the PTO Shaft needs to be shortened, follow the manufacturer’s instructions in the manual and/or contact us if you have questions.  If the shaft is too long, it could damage both the mower’s gearbox and gearbox mounting plate on the deck.

Specification

• Grizzly
• Part number: 1810
• 1800 Series Lift-Type Cutter
• Heavy-Duty
• PTO HP: 52
• Width: 120-inch
• Weight: 1480 lbs.
• Transport width: 122 inches
• The driveline shield and clutch are included but may need to be shortened for your application to prevent mower gearbox damage.  Consult the owner’s manual or contact us if questions.
• Cutting height: 2-10 inches
• Cutting capacity: 3 inch
• Deck thickness: 7 gauge
• Side bands: 8 inch
• PTO drive shaft: Series 5 with slip clutch
• Center drive shaft; shock coupler protected
• Stump jumper: 1/2 inch plate

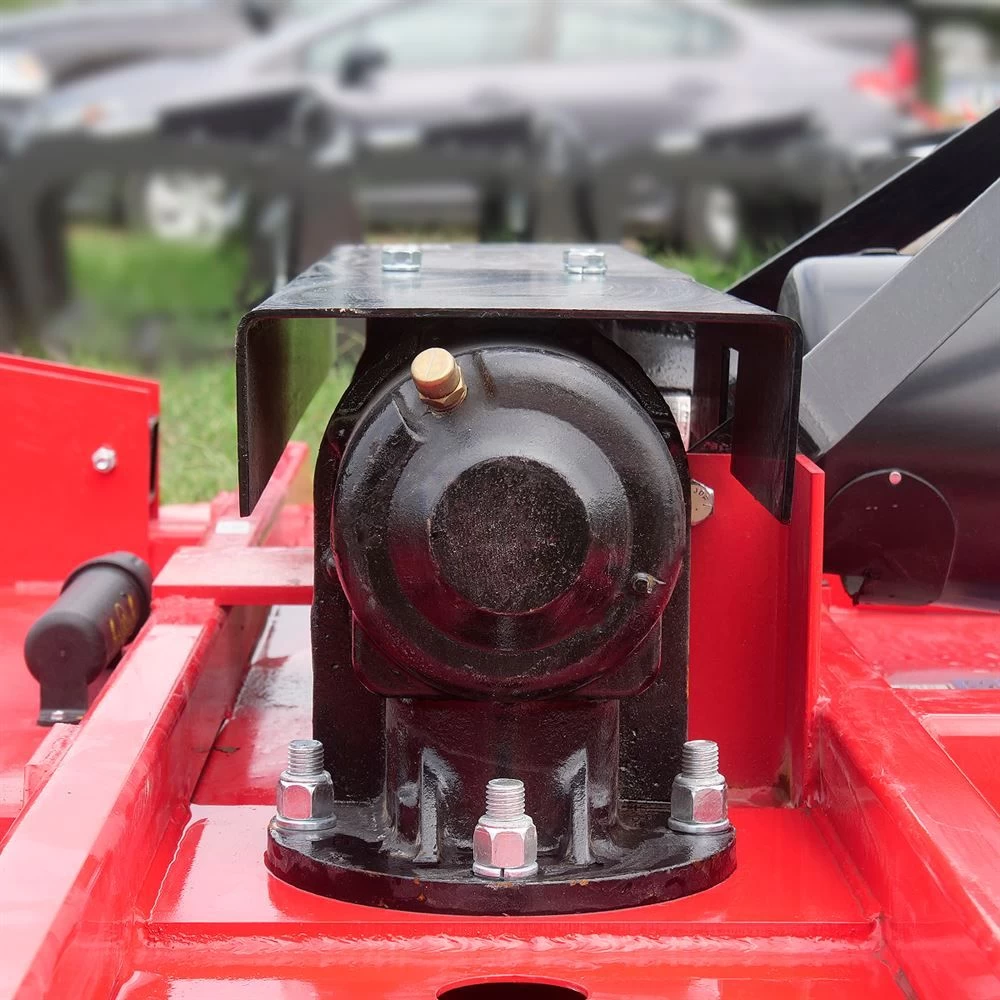

• Center Gearbox: 125 HP
• Outboard Gearbox: 100 HP
• Laminated wheels
• Hub: bearing
• Category 1& 2 hitch
• Skid shoes: replaceable
• Quick hitch compatible
• For Blade use ASC # 122451
• For Blade carrier use ASC # 123726
• For Blade Bolt use ASC # 49330
• For PTO Shaft use ASC # 42969A
• Use ASC 123725 counter clockwise blade
• For replacement  center gearbox use ASC # 89752
• For flex coupler assemblies (shafts in between gearboxes) use ASC # 36950

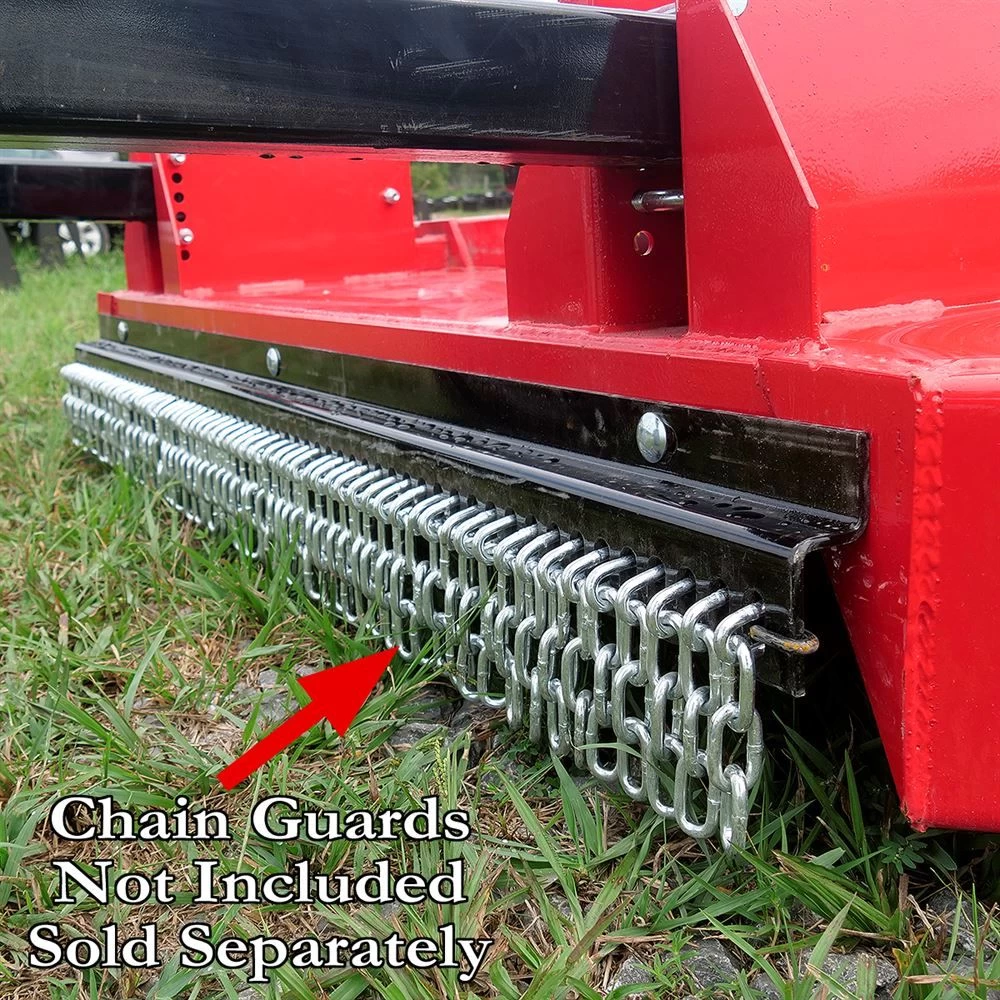

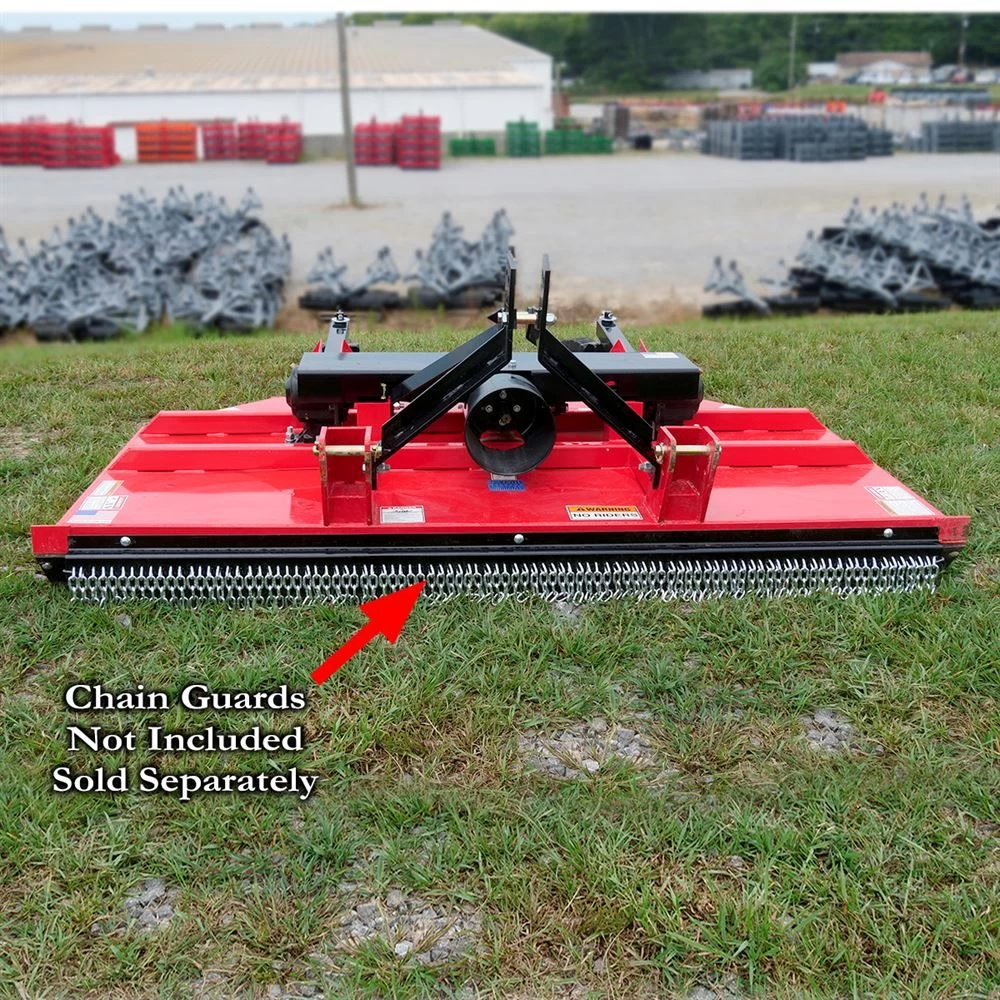

• Chains are not included
• Additional chains can be ordered from Agri Supply Office from vendor
• 5-year manufacturing warranty (Agri Supply® covers the first year)

Check out our selection of Estate & Flail Mowers at Agri Supply®

Heavy-Duty 1800 Series Grizzly cutters are designed for applications such as weeds, grass, and brush up to 3-inches in diameter.
