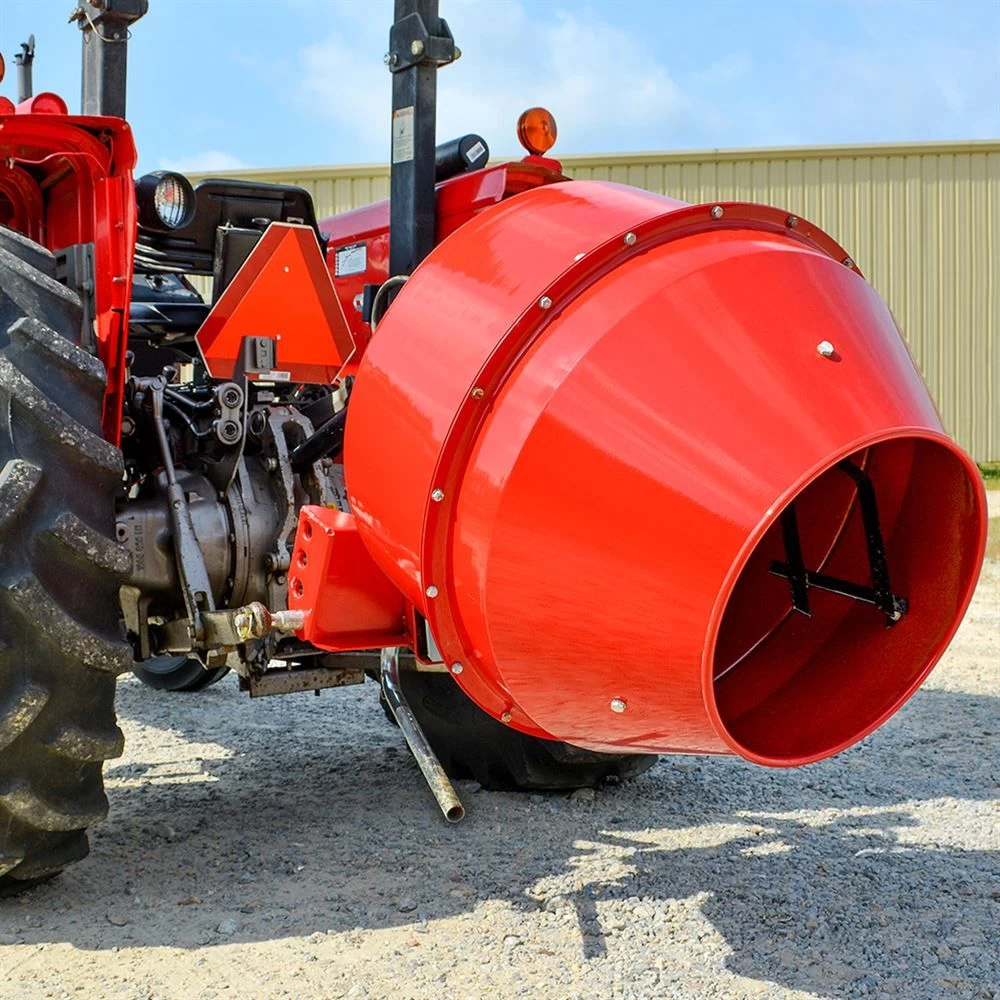

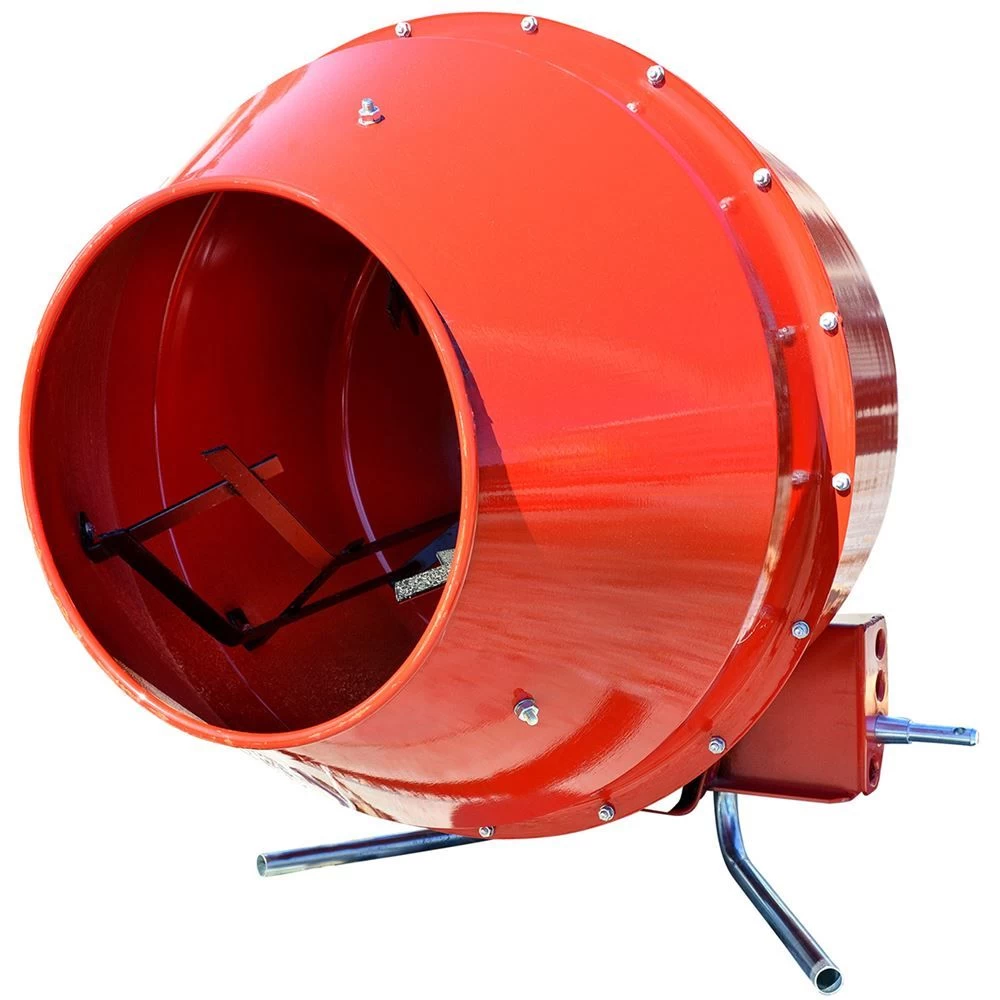

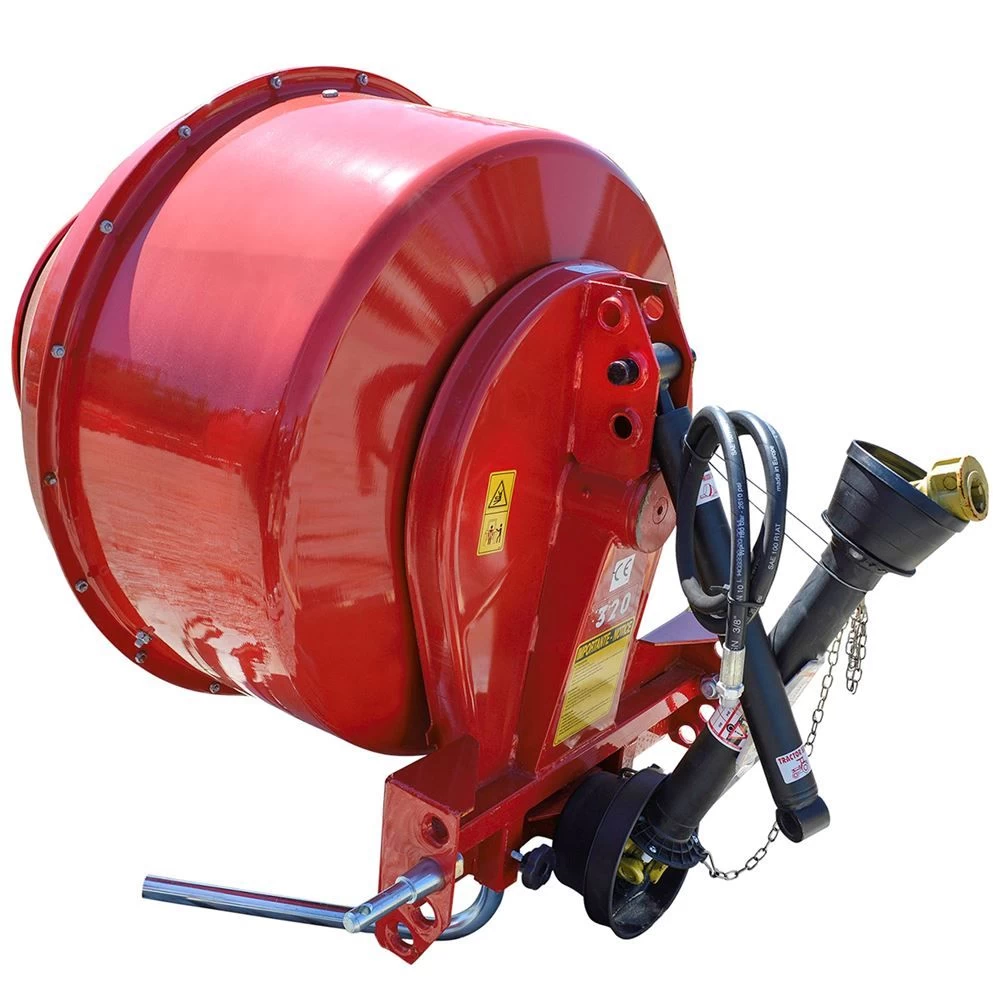

COSMO 3 PT Cement Mixer, 8 Cubic Foot Capacity

The COSMO 3-point cement mixer is ideal for farm and home use. With an 8 cubic feet capacity, you can mix your concrete and carry it to those hard to reach places. The MIXER 80 attaches to your Category 1 tractors with a 3-point hitch. The cement mixer hopper tub is constructed of 3 mm steel with no welded joints. The hopper is bolted together to protect internal parts from exposure and wear. The diameter of the loading mouth is 1.45 feet.

The cement mixture is hydraulically assisted with a 1-1/2 inch x 18 inch cylinder. The cylinder lifts the hopper up into position for mixing, and uses gravity to lower the hopper for dumping. Remote hydraulics are required for the use of this attachment.

The MIXER 80 comes with the PTO. It has a chain transmission drive of 10:1 and the drive is protected by steel sheath.

Specifications:
• MIXER 80
• Contains: 3/8″ hose for the cylinder
• Category 1, 3-point hitch
• Tub made of 3 mm steel
• PTO and cylinder included
• 8 cubic feet. capacity
• Chain transmission drive 10:1
• Painted with primer and polyurethane finish
• For replacement shear bolt on the PTO shaft, use 3/8″ x 2-1/2″ Grade 2 bolt with 3/8″ lock nut
• Replacement cylinder, ASC #35791
• Replacement PTO shaft, ASC #59328A
• Replacement hex nut, ASC #26443
• Replacement complete cylinder rebuild kit, ASC # 40114
• Weight: 220.4 lbs.
• To replace the hose assembly and the OEM replacement is not readily available, purchase qty 1 of each of the items noted below and assemble together with thread sealant where needed:
•         #18660 – 3/8 inch FPT x 3/8 inch FPT Swivel
•         #86657 – 3/8 inch X 60 inch Hydraulic Hose with one swivel end
•         #22227 – 1/2 inch FMPT I.S.O. Male Hydraulic Tip
•         #23783 – 1/2 inch X 3/8 inch Galvanized Hex Bushing for male tip

The COSMO 3 PT cement mixer is a premium attachment to make your concrete work mobile and get to tough to reach places. Constructed with 3 mm steel, the hopper has no welded joints and is bolted together to protect parts from exposure and wear. The hopper has a capacity of 8 cubic feet.
