Agmate® Finishing Mower, 6′ Rear Discharge, 6FMOWR

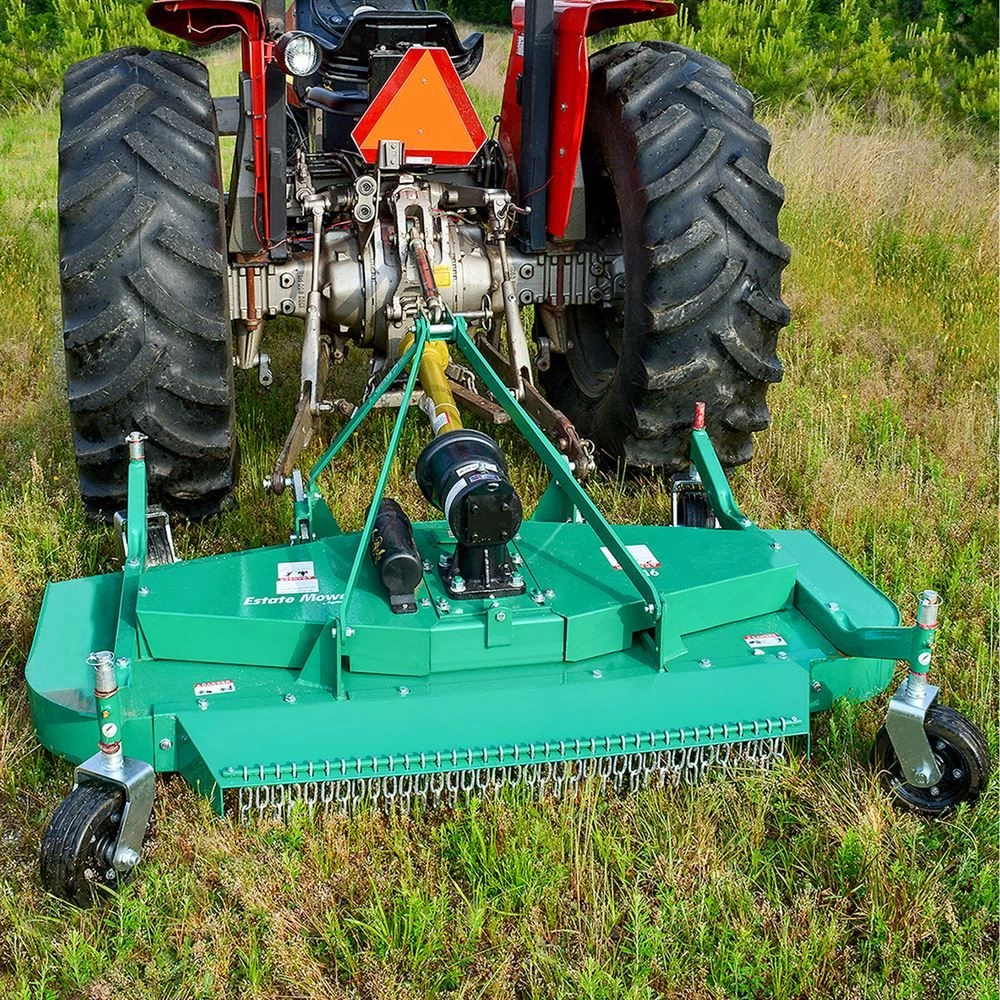

This Agmate® 6 foot finishing mower will allow close mowing to shrubs and buildings for faster yard maintenance. Either side may be used for close trimming, which is a feature that is not available on side discharge systems. The rear discharge gives you an advantage for eliminating grass buildup in uncut areas; it also reduces blade wear and fuel costs.

The high lift blades lift the grass and cut it cleanly. It then discharges the cut grass neatly to the rear of the mower path. The 42 inch discharge throat provides an almost unobstructed flow of cut material and the chain guard allows the grass to be safely and smoothly discharged.

This 3-point mower has 4 caster gauge wheels that adjust the cutting height and allow the deck to float with the ground contour. The solid rubber flotation tires are not affected by punctures or tire pressure loss, ensuring an even cut every time.

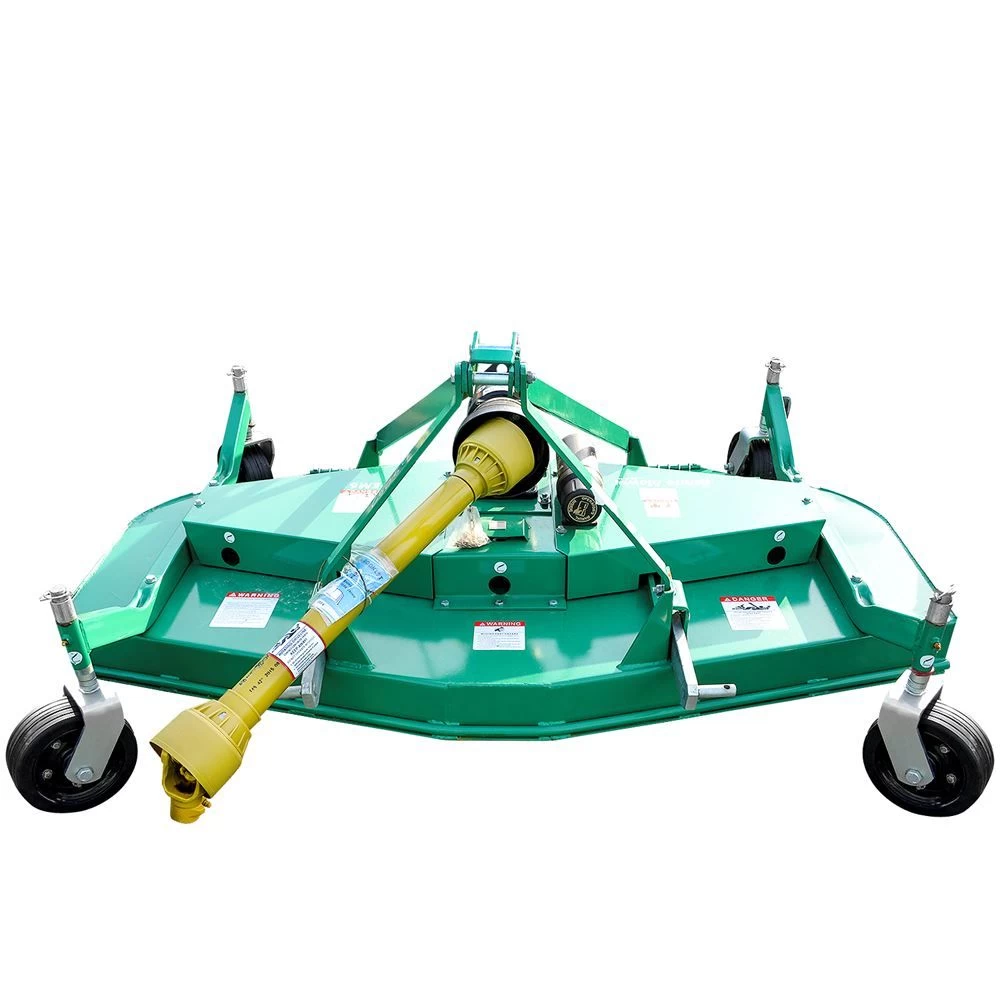

The finishing mower has 3 belt driven blades with a chain guard. The mower has category 1 hitch pins installed, and a quick coupler PTO driveline shaft is included. The recommended tractor HP for this mower is 22 to 50.

Specifications:
• Agmate® EM6
• 6 foot finishing mower
• PTO drive: 540 RPM
• Recommended tractor horsepower: 22 to 50
• Overall width: 72.44″
• Measurement from front to rear: (outside of wheel to outside of wheel) 59″
• Cutting width: 71.65″
• Cutting height: 1.38″ – 4.53″
• Weight: 546 lbs.
• Number of blades: 3
• Deck thickness: 9.5 gauge (3.5 mm)
• Gearbox HP: 45
• PTO driveline: series 4
• Blade thickness: 1/4″
• Category 1 free floating hitch
• Gauge wheel: 3″ wide x 8″ tall (standard duty)
• Gearbox Ratio: 1:2.83 with cast iron housing
• Blade Speed: 71 m/s; 2,223 RPM
• Rear discharge width: 42 inches
• PTO driveline shaft included; wider mower
• For Axle Bolt use ASC # 69637
• Use ASC #68196 replacement blades
• Use a pair of ASC #68197 V-belts
• Use ASC #83778 as replacement wheel
• Replacement wheel fork, ASC #69627 if unavailable, use 21023 B74 Belt
• Replacement wheel spacer, ASC #69622
• For replacement spindle assembly use ASC # 78582
• Replacement PTO shaft use ASC # 54718

This Agmate® finishing mower is ideal for large lawns or golf courses. The 6 ft. 3-point mower has a 71.65 in. cutting width with a 42 in. rear discharge to make cutting your lawn easier.
