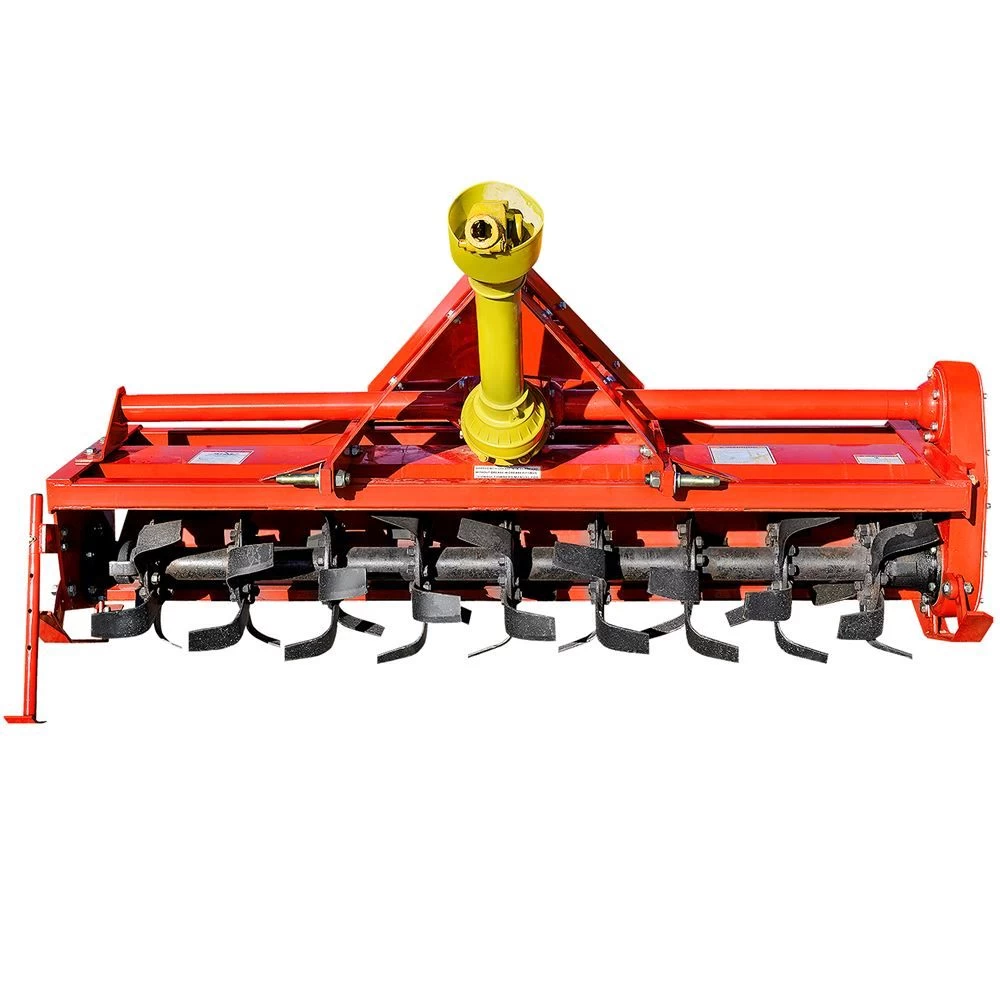

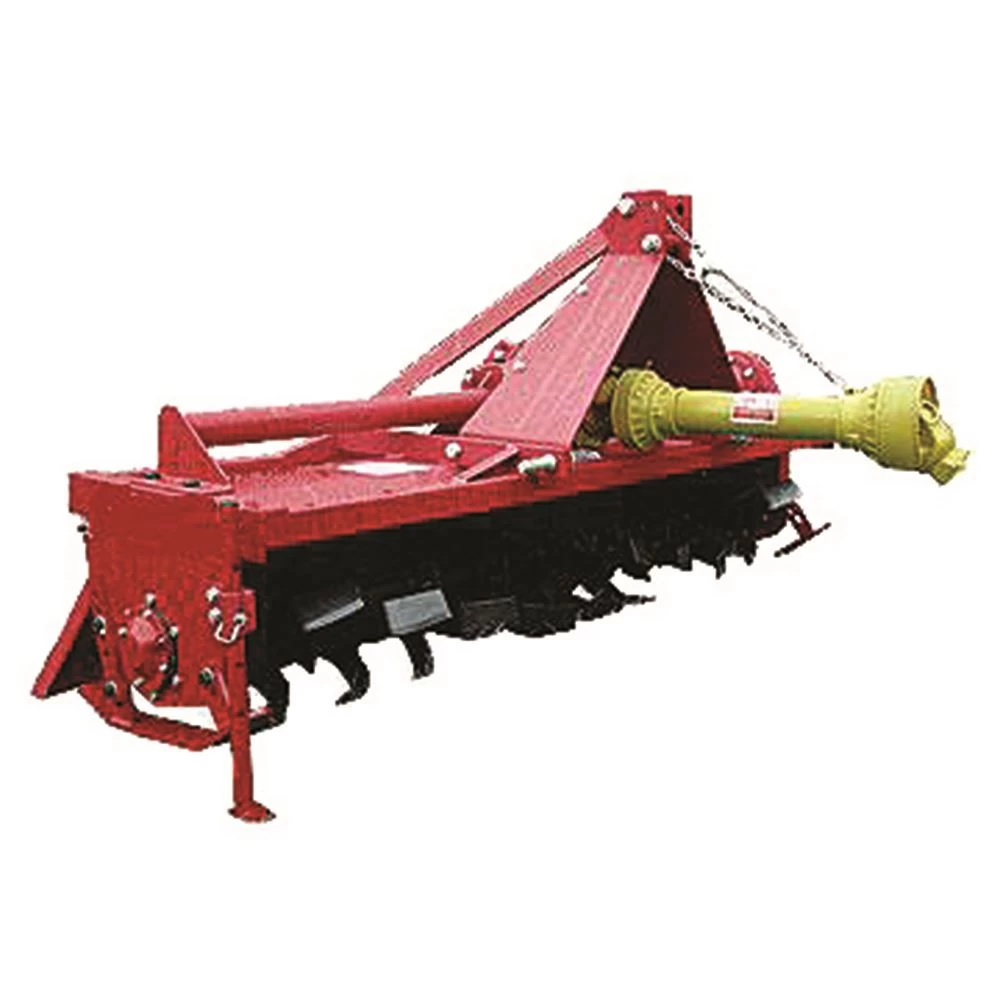

72″ Rotary Tiller, Gear Driven

Whether it is spring, summer or fall planting, this 72 inch gear driven rotary tiller will help you prepare your soils for planting. This Tillovator has a heavy duty cast iron gear box and comes with a power take off shaft equipped with a slip clutch.

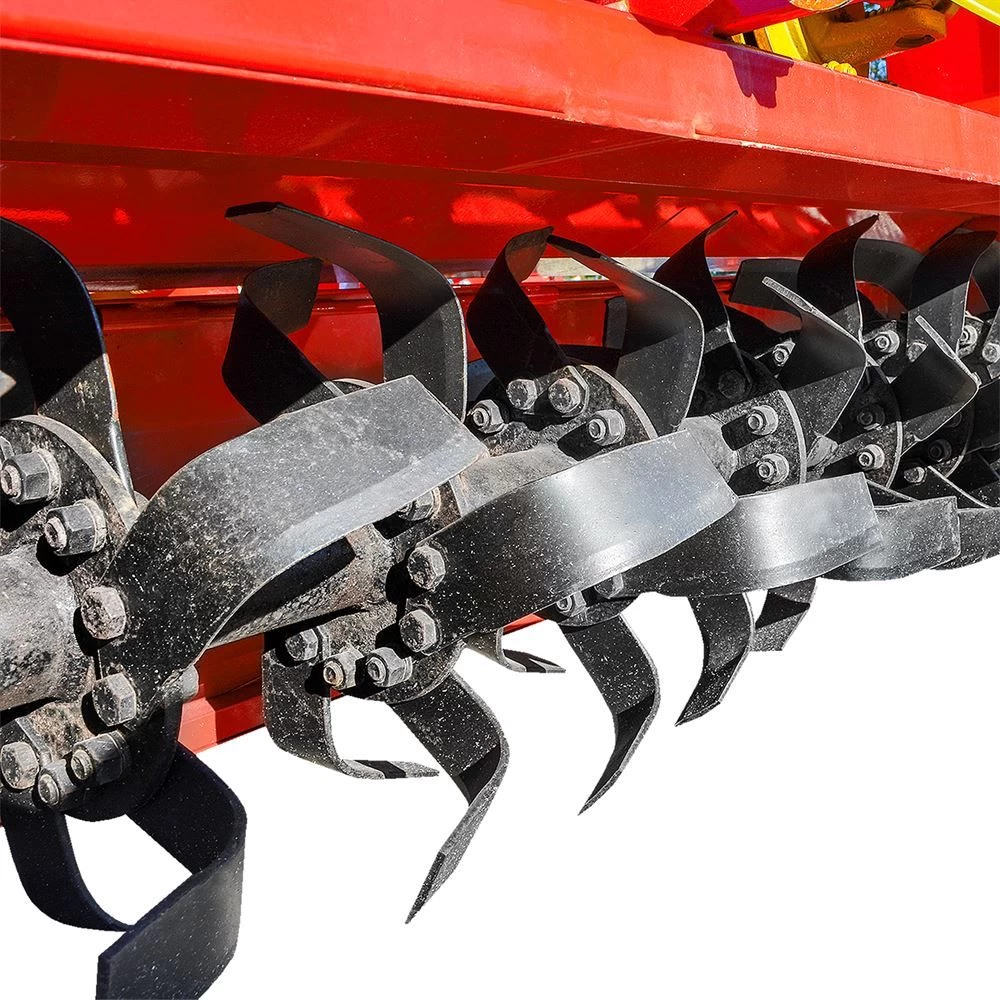

Ready to attach, this rotary tiller will turn over and mix soils easily. The tiller has 9 rotary flanges equipped with 6 high carbon steel tines each

Specifications:

• Gear driven rotary tiller
• Width: 72 inches
• Will till to a depth of 6 to 7 inches
• 665 lbs.
• Heavy duty cast iron gear box
• Slip Clutch
• Category 1 quick hitch
• Parking stand
• When more gear oil is needed, use ASC #26940 – GL5-85W-140
• Number of Tines Per Flange: 6
• Number of Flanges: 9
• Total Number of Tines: 54
• Tine construction: hard carbon steel
• Replaceable Skid Shoes: Standard
• Recommended PTO HP: 35-50
• PTO shaft replacement, ASC #40944 or #89364
• Friction disc replacement, ASC #66659
• Replacement tines; ASC # 77729
• Replacement gearbox use ASC # 78796
• Replacement seal lip use ASC # 78808
• Replacement double bearing use ASC # 78809
• Replacement gear – 35 teeth use ASC # 78810
• Replacement gear – 16 teeth use ASC # 78811
• Replacement gear – 28 teeth use ASC # 78812
• Replacement gasket use ASC # 78813
• Replacement output gasket 0.8 mm use ASC # 78818
• Replacement output gasket 0.5 mm use ASC # 78819
• Replacement input gasket 9.4 mm use ASC # 78820
• Replacement input gasket 0.2 mm use ASC # 78821
• Replacement seal double lip use ASC # 78822
• Replacement sealed ball bearing (6308) use ASC # 78823
• Replacement ball bearings (6308) use ASC # 78824
• Replacement ball bearing (6307) use ASC # 78825
• Replacement ball bearing (6207) use ASC # 78826
• Replacement pinion shaft use ASC # 78827
• Replacement output gear – 19 teeth use ASC # 78828
• Replacement side gearbox assembly use ASC # 78797

We also carry a variety of other tillovator sizes, as well as King Kutter and Caroni brands.

Use this gear driven rotary tiller to prepare soils for planting. Break up and augment soils easily with this Tillovator. The tiller has a 72 inch working width and 9 flanges with 6 tines per flange. You will have your garden ready in no time.
