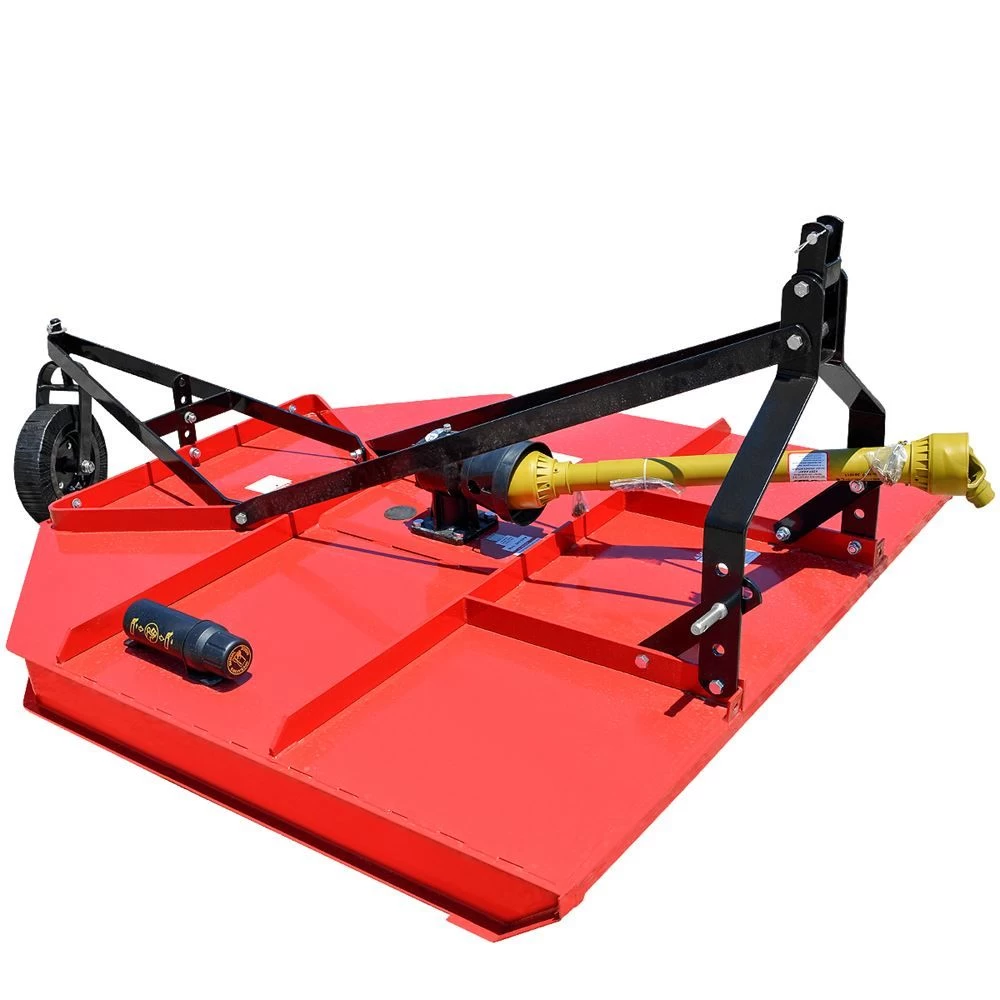

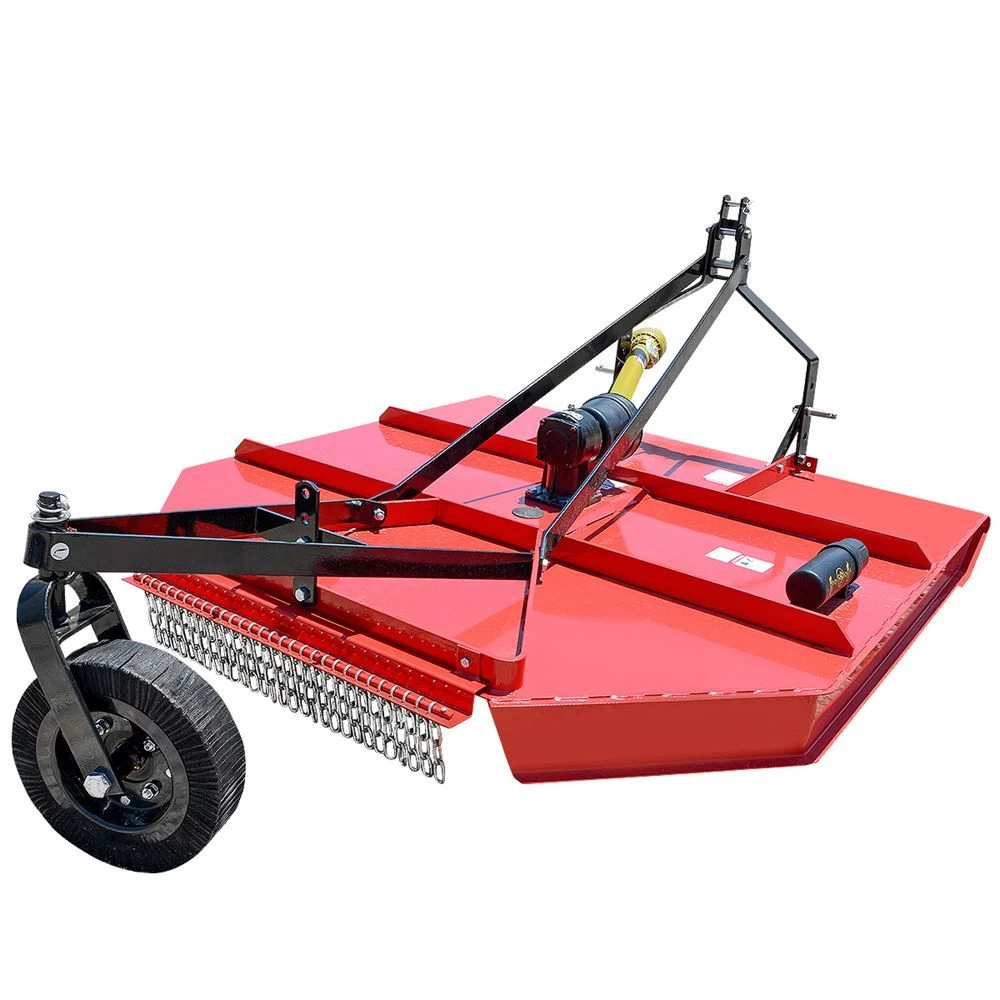

6′ Rotary Cut Mower 3 Point Category 1

This mower is a category 1 and has a recommended tractor horsepower of 22-50. The rear discharge on this mower gives you the advantage of eliminating grass buildup in uncut areas and reduces blade wear and fuel costs.

Specifications

• Rotary mower
• Model: 6RMOW
• 3 point
• Designed for use on tractors with a 540-RPM
• Weight: 676 lbs.
• Gearbox: 45 HP
• Number of blades: 2
• PTO shaft included
• Segmented solid rubber rear wheel
• Saucer shaped blade carrier
• Category 1 hitch pins
• Recommended HP: 22-50
• Cutting width: 68-7/64″
• Overall width: 73-5/8″
• Cutting height: 1-37/64″ – 10-15/64″
• Measurements: 77.17″ x 76.78″ x 15.75″

Replacement Parts

• Replacement Gearbox use ASC # 121221
• For replacement blades use either of these:
  • 109165 – 30-1/2″ x 3″ x 1/2″ Rotary Mower Blade
  • 10523 – 30″ x 3″ x 1/2″ Rotary Mower Blade
• For replacement tailwheel use ASC# 10414
• For replacement tailwheel hub use ASC# 31903
• Replacement Tailwheel Axle Bolt ASC# 84167 – 1 inch X 8 inch Bolt
• Replacement Nut for Tailwheel Axle Bolt is ASC# 106503 – 1 inch Locknut with Nylon Insert
• For Shear Bolt, use Grade 2, 1/2 inch x 3-1/2 inch bolt
• For PTO Shaft use ASC # 35734A

Additional sizes:

• 105961 – 5′ Rotary Cut Mower 3 Point Category 1

This 6′ rotary cutter with 3 point hook up can be used for large lawns or golf courses. This mower has a cutting width of 68-7/64″, and can cut a large area in a short amount of time.
