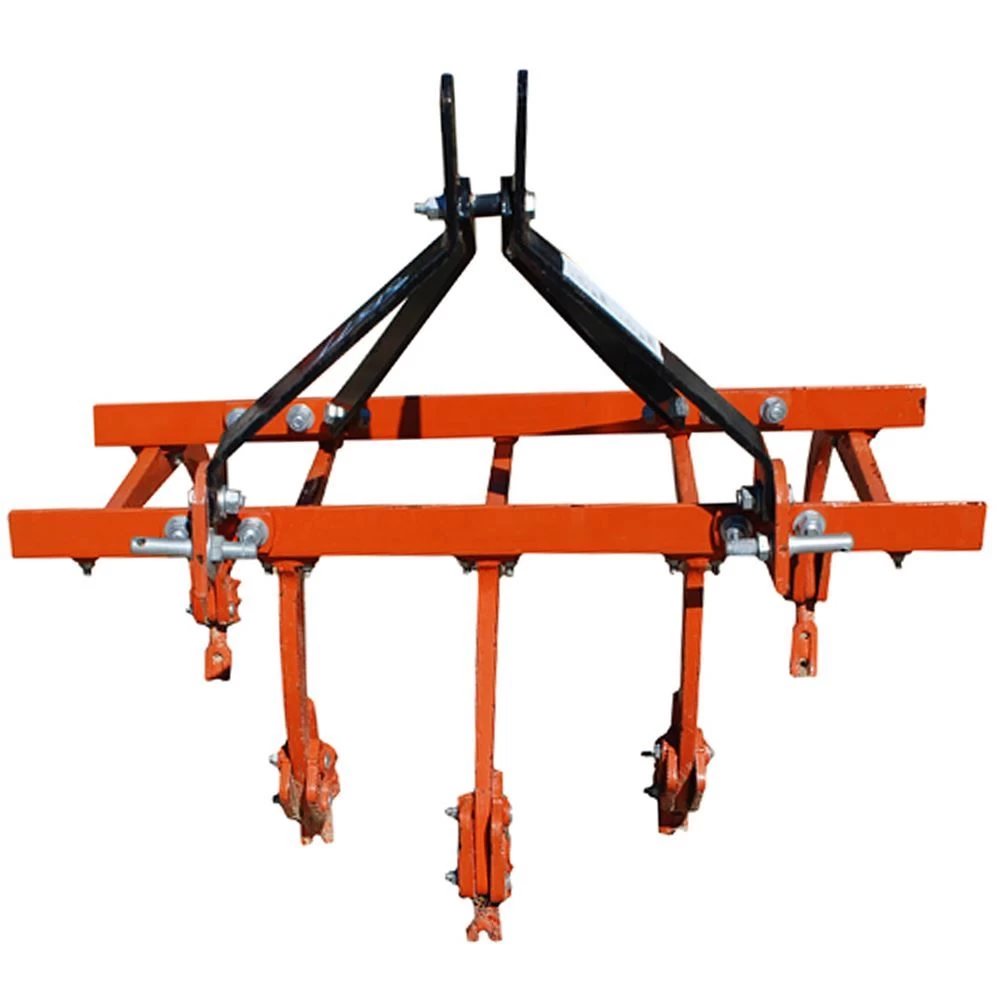

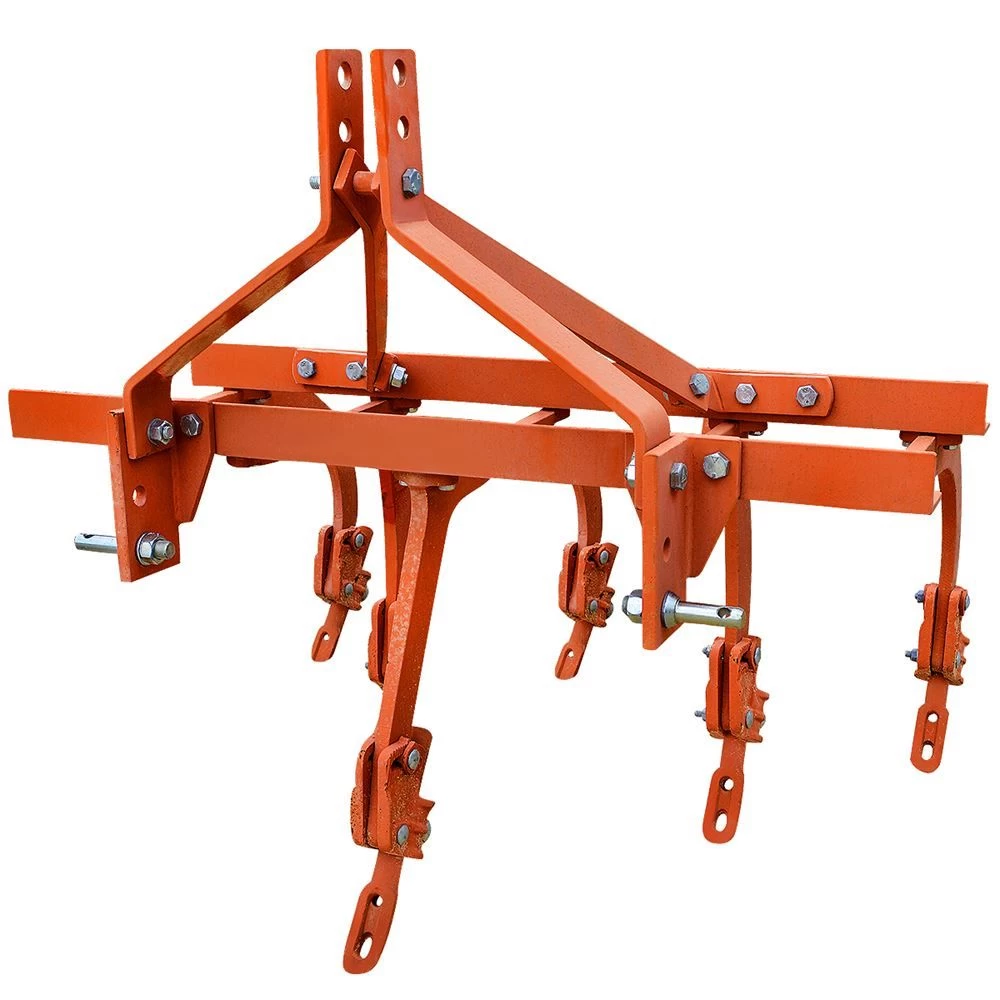

5 Shank Ridge Cultivator 1 Row

This is a 5 shank (1 row) rigid cultivator that seed drills or fertilizer attachments can be attached to. You can adjust the rows on this cultivator for your working conditions. Several different kinds of points can be used on the cultivator, the most common ones include: 7″, 10″, and 2-1/2″ x 6″.

Specifications:
• This uses the following:
• Long Shank: 2 pieces
• 3 point hitch
• Category 1
• Medium shank: 2 pieces
• Front: 1 piece
• Outside to outside of the frame: 46″
• Frame angle size: 2-9/16″ x 5/16″
• Length: 46-1/16″
• Width: 35-3/64″
• Height: 42-1/8″
• Tines: 2-31/64″ x 55/64″
• Cuffs: SG iron
• Stems: 1-3/16″ SG iron
• Front linkage: 2-61/64″ x 15/32″
• Back linkage: 1-31/32″ x 15/32″
• Implement pin: 55/64″
• Distance across from inside to inside of middle shank: 19-1/2″
• Measurement from back shank going diagonally up to the middle shank: 14-1/2″
• Measuring from middle shank going diagonally up to the front shank: 20-1/2″
• Weight: 236 lbs.

1 Row 5 Shank Rigid Cultivator Less Sweeps
