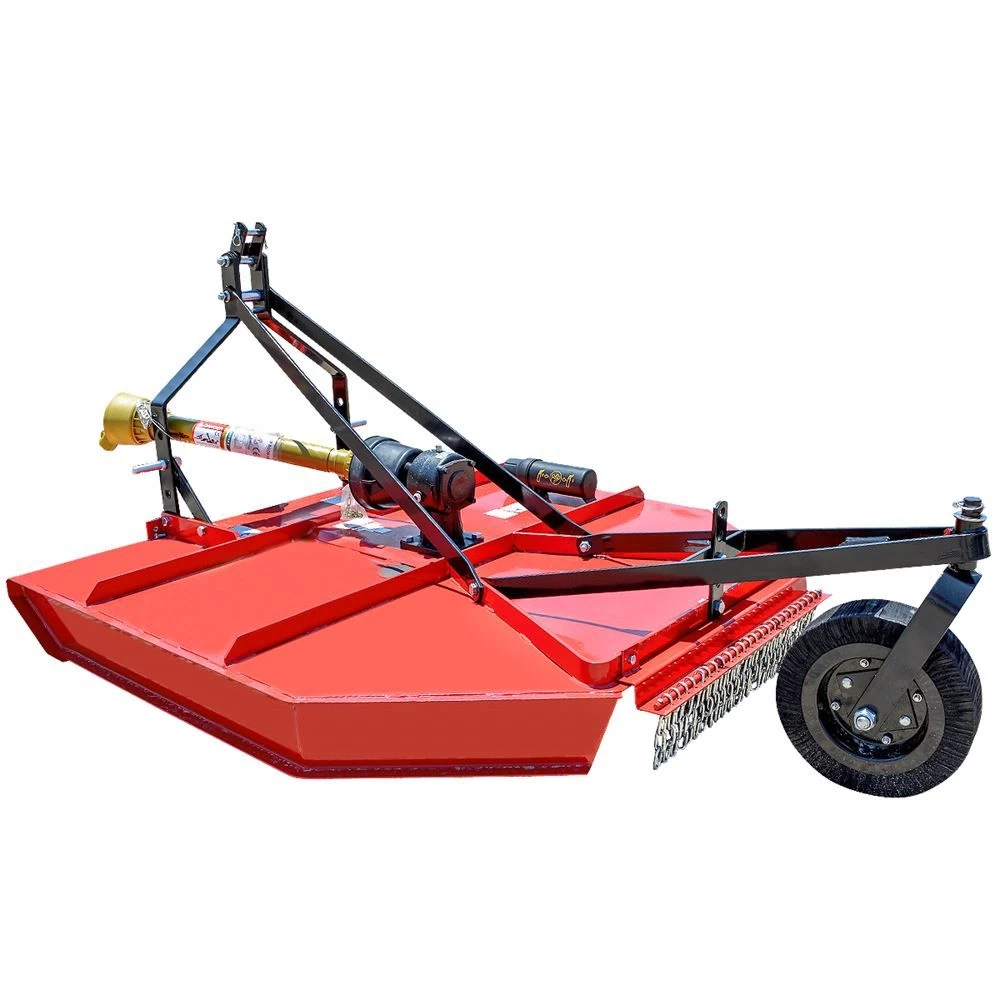

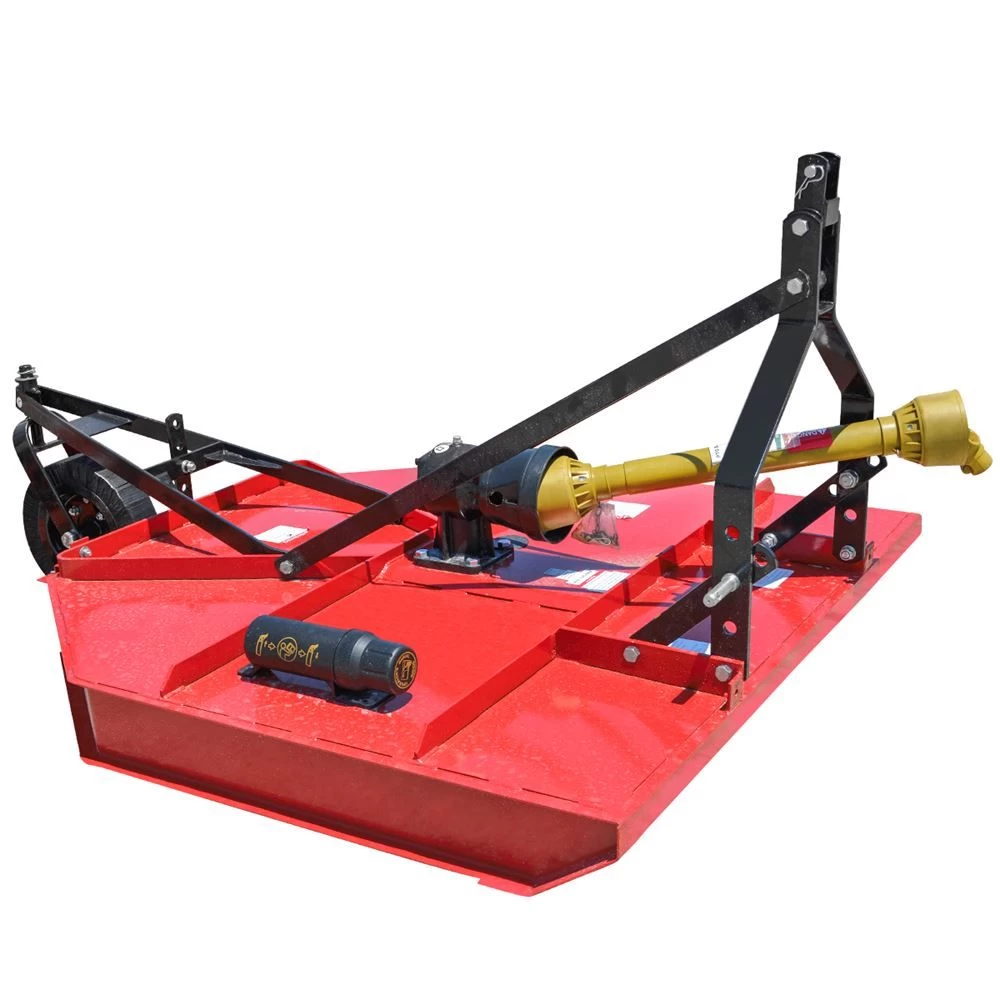

5′ Rotary Cut Mower 3 Point Category 1

This mower has category one hitch pins with a recommended tractor horsepower of 22-50. The rear discharge on this mower gives you the advantage of eliminating grass buildup in uncut areas and reduces blade wear and fuel costs.

Specifications

• Rotary mower
• Model: 5RMOW
• 3 point
• Designed for use on tractors with a 540-RPM
• Top of deck thickness is 1/8 inch
• Weight: 496 lbs.
• Gearbox: 45 HP
• Number of blades: 2
• PTO shaft included
• Segmented solid rubber rear wheel
• Saucer shaped blade carrier
• Category 1 hitch pins
• Recommended tractor 22-50 HP
• Cutting width: 54-21/64″
• Overall width: 61-27/64″
• Cutting height: 1-37/64″ – 10-15/64″
• Will cut brush up to 1″ diameter
• Measurements: 63″ x 63″ x 18.51″

Replacement Parts

• 109164 – 23″ x 3″ x 1/2″ Rotary Mower Blade
• 49330 – BB75-K Blade Bolt
• Replacement Gearbox use ASC # 121221
• Replacement Tailwheel use ASC# 10414
• Replacement Tailwheel Hub use ASC# 31903
• Replacement Tailwheel Axle Bolt ASC# 84167 – 1 inch X 8 inch Bolt
• Replacement Nut for Tailwheel Axle Bolt is ASC# 106503 – 1 inch Locknut with Nylon Insert
• PTO Shaft use ASC # 35734A
• Replacement Shear Bolt use 1/2 inch x 3-1/2 inch Grade 2 Bolt

Additional sizes:

• 105962 – 6′ Rotary Cut Mower 3 Point Category 1

This 5′ rotary cutter 3 point hook up can be used for large lawns or golf courses. This mower has a cutting width of 54-21/64″, and can cut a large area in a short amount of time.
