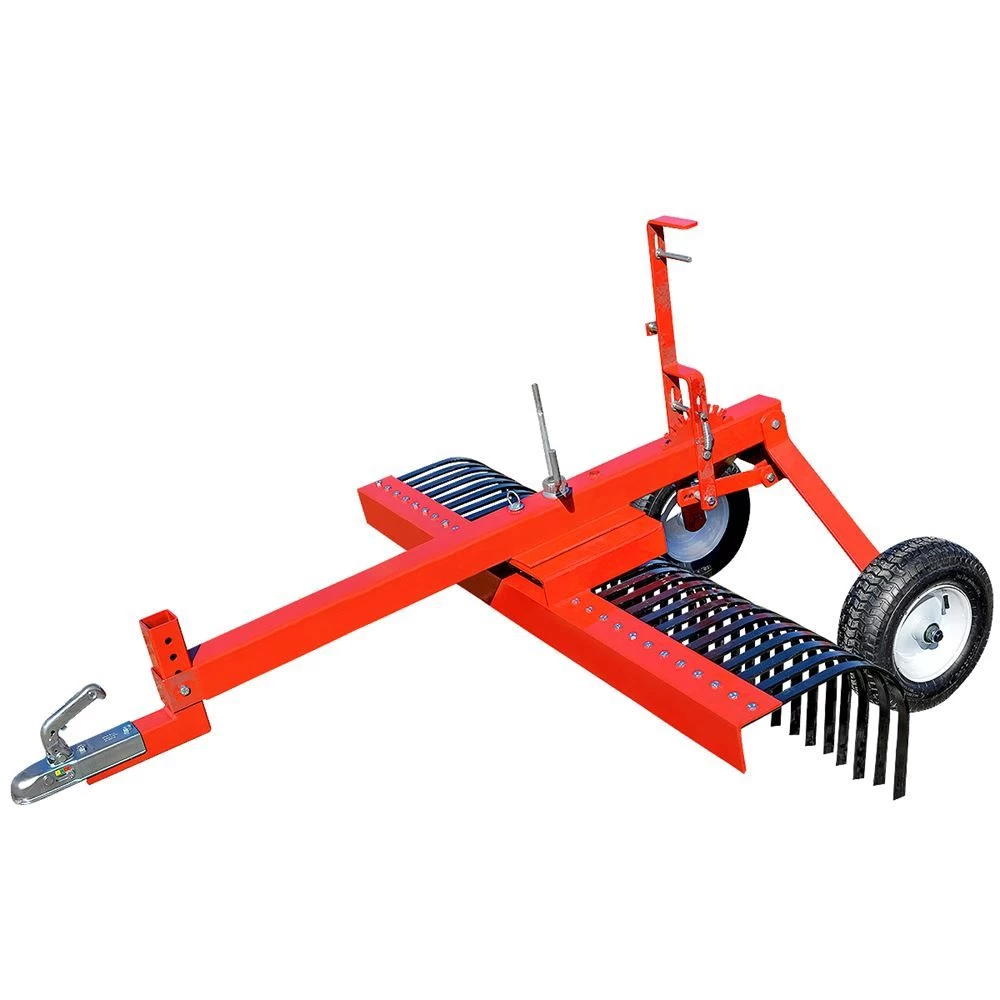

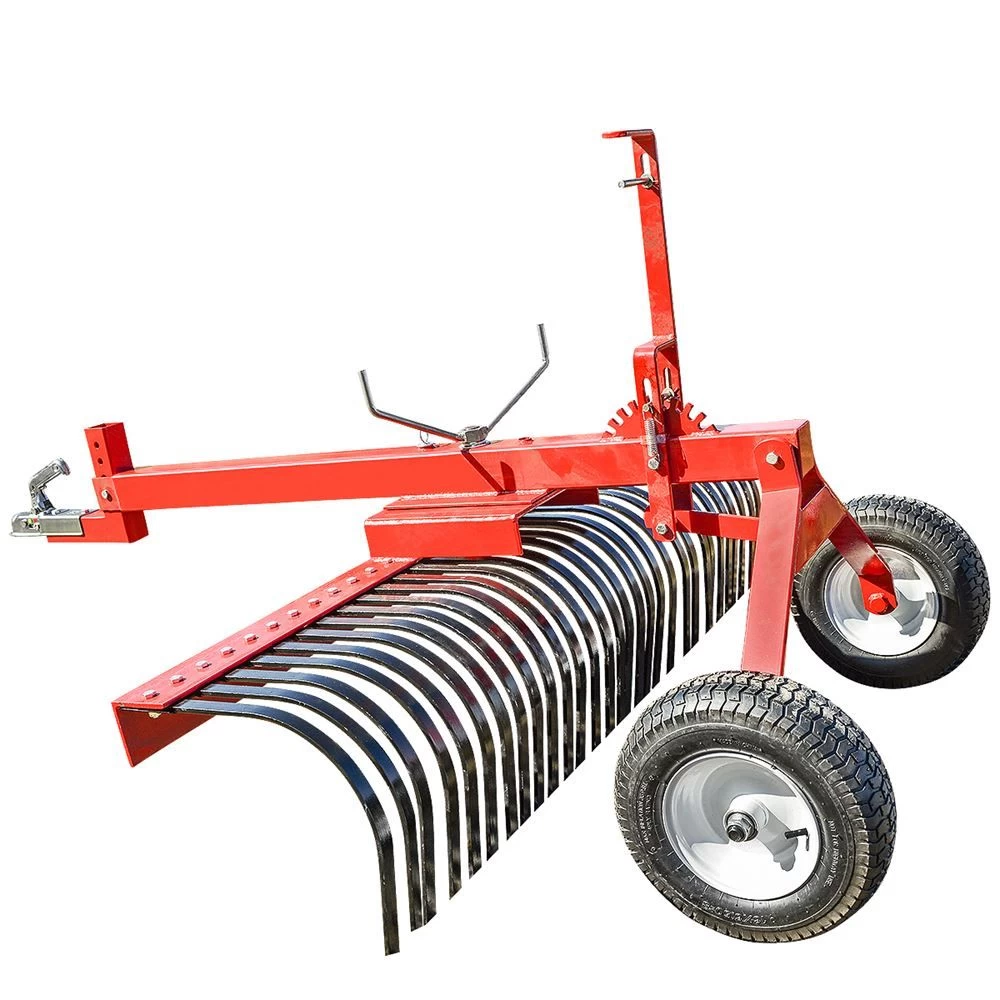

5′ Landscape Rake With Wheels For ATV 24 Tines

Specifications

• ATV landscape rake
• 24 tines
• The width of rake: 5′
• The overall length of tines: 27″
• 2″ receiver for a 2″ ball (NOT included)
• Weight: 360 lbs.
• Rake can swivel
• 1 additional hole on either side of the straight position
• 23-3/4″ distance between tires
• Number of tines: 30
• Width of the tongue: 2.36″
• Tires: 16 x 6.5-8
• 4 ply tires
• Max PSI: 35
• Nylon tires
• Weight: 360 lbs.
• If increased soil flow through the tines is desired, consider removing every other tine
• Minor assembly required. 19mm and 17mm wrench/socket needed to pull and replace 3 bolts.  Comes with manual and parts breakdown. Ships partially assembled in order to reduce freight cost.

Replacement Parts

• 87915 – 2″ Ball Coupler, 2-1/2″ Channel, 3500 lb. Capacity
• 107646 – Replacement Tine to fit 5′ Landscape Rake
• 124430 – Tire and Wheel Assembly

Use this 5-foot landscape ATV rake for raking up twigs, leaves, and other lawn and yard maintenance. Easily connect it to your ATV and successfully accomplish all of your lawn repairs.
