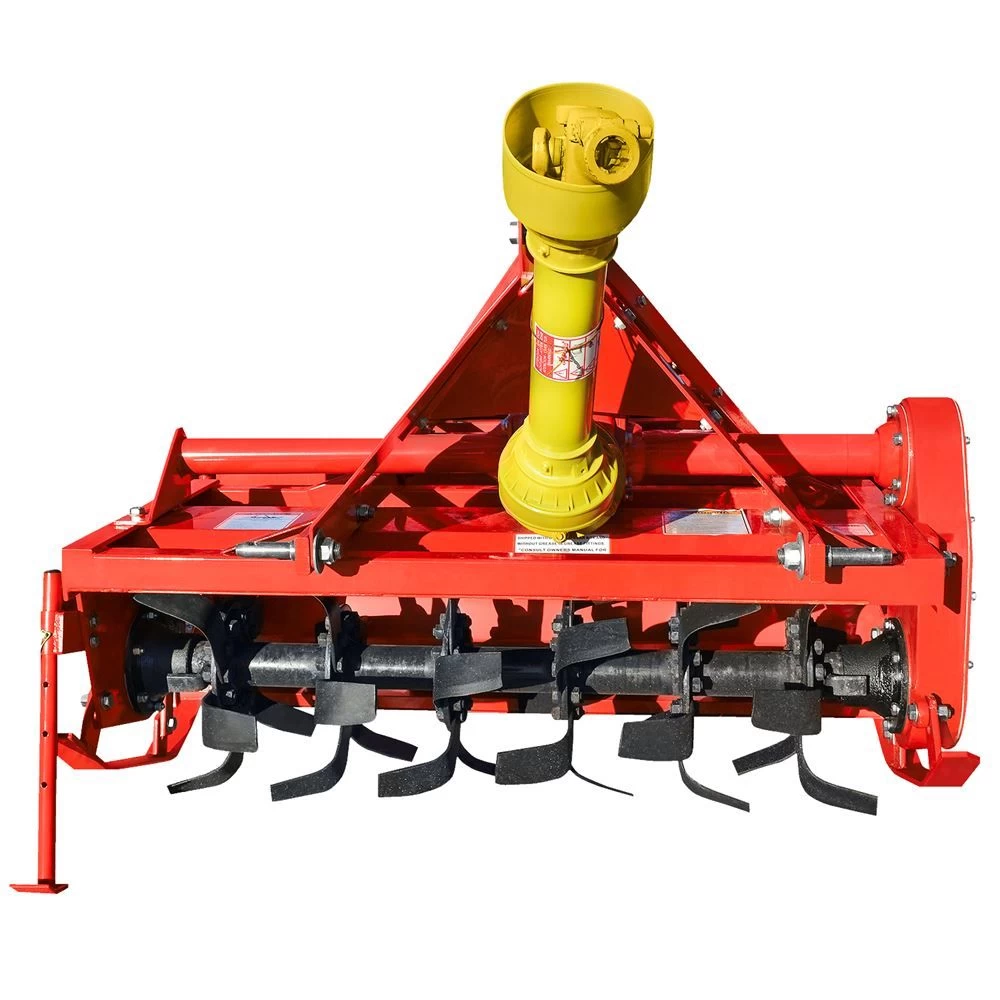

48″ Rotary Tiller, Gear Driven

With a working width of 48 inches, this 3-point rotary tiller has 6 flanges with 6 tiller blades each. The recommended tractor horsepower for this tiller is 20 to 35 hp. The Tillovator comes standard with a PTO and slip clutch to help protect the gearbox.

Specifications:

• CGR-48 Rotary Tiller
• Working width: 48 inches
• Will till to a depth of 6 to 7 inches
• Offset to right: 4 inches
• 542 lbs.
• Heavy-duty cast iron gearbox: standard
• Category 1 quick hitch: standard
• When more gear oil is needed, use ASC #26940 – GL5-85W-140

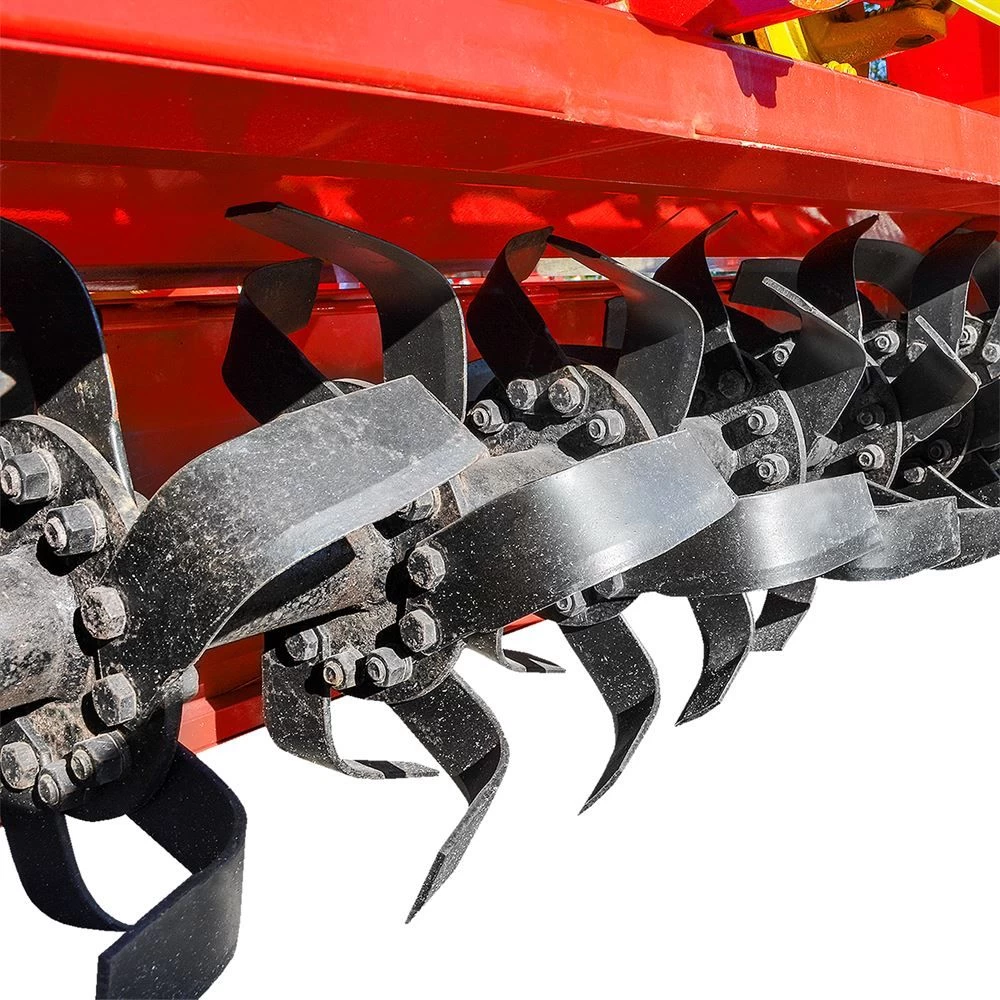

• Number of flanges: 6
• Number of blades per flange: 6
• Total number of blades: 36
• Required tractor hp: 20 to 35
• Equipped with a parking stand
• Replacement ASC #77729 rotary tiller tine pack (one left one right includes nuts and bolts)
• Replaceable skid shoes
• PTO shaft replacement, ASC #40944 or #89364
• Use ASC #31971 for a replacement friction plate
• Replacement output gasket for gearbox, ASC # 78819
• Replacement gearbox use ASC # 78796
• Replacement seal lip use ASC # 78808
• Replacement double bearing use ASC # 78809
• Replacement gear – 35 teeth use ASC # 78810
• Replacement gear – 16 teeth use ASC # 78811
• Replacement gear – 28 teeth use ASC # 78812
• Replacement gasket use ASC # 78813
• Replacement output gasket 0.8 mm use ASC # 78818
• Replacement output gasket 0.5 mm use ASC # 78819
• Replacement input gasket 9.4 mm use ASC # 78820
• Replacement input gasket 0.2 mm use ASC # 78821
• Replacement seal double lip use ASC # 78822
• Replacement sealed ball bearing (6308) use ASC # 78823
• Replacement ball bearings (6308) use ASC # 78824
• Replacement ball bearing (6307) use ASC # 78825
• Replacement ball bearing (6207) use ASC # 78826
• Replacement pinion shaft use ASC # 78827
• Replacement output gear – 19 teeth use ASC # 78828
• Replacement side gearbox assembly use ASC # 78797
• Replacement Rotor use 78798

We also carry a variety of other tillovator sizes, as well as King Kutter and Caroni brands.

Use this 3-point rotary tiller to help you prepare your soils for planting. This tiller has a working width of 48 inches and is equipped with 36 tiller blades. This unit comes standard with a heavy duty cast iron gear box, PTO shaft, slip clutch, Category 1 quick hitch, and a parking stand.
