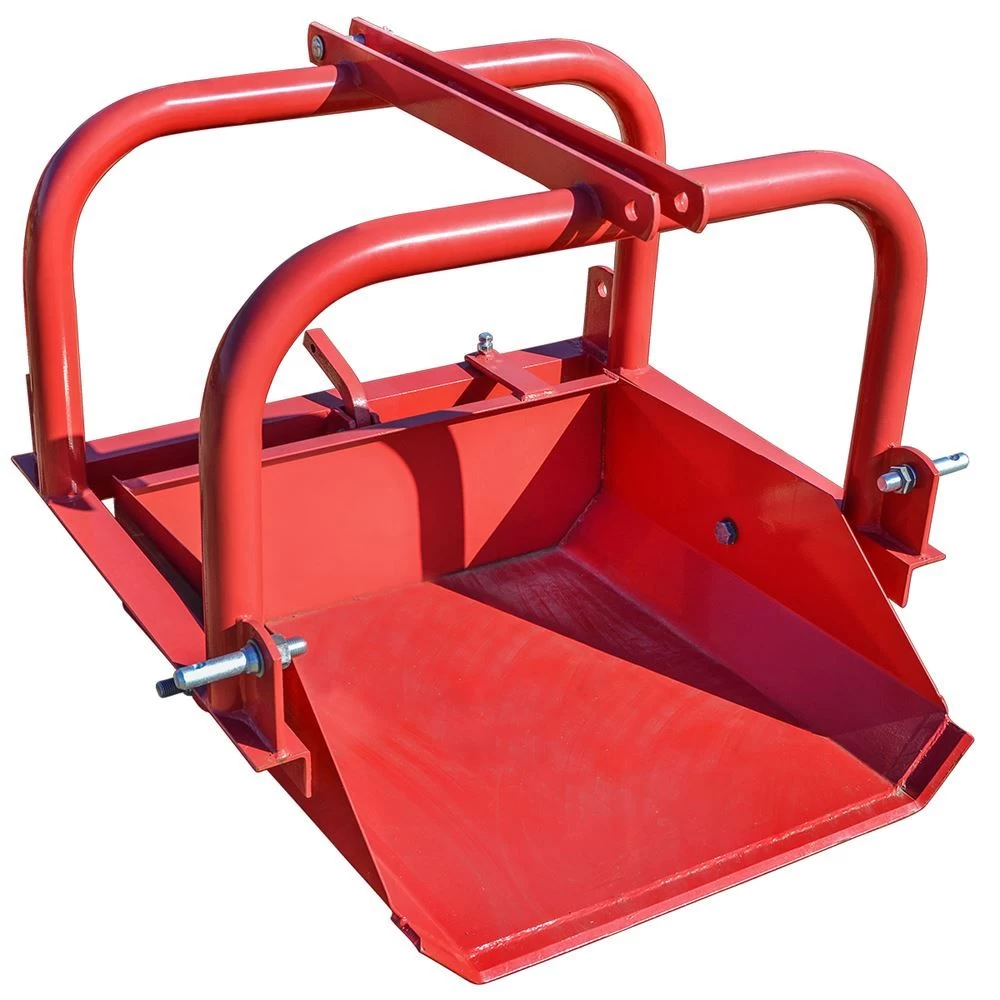

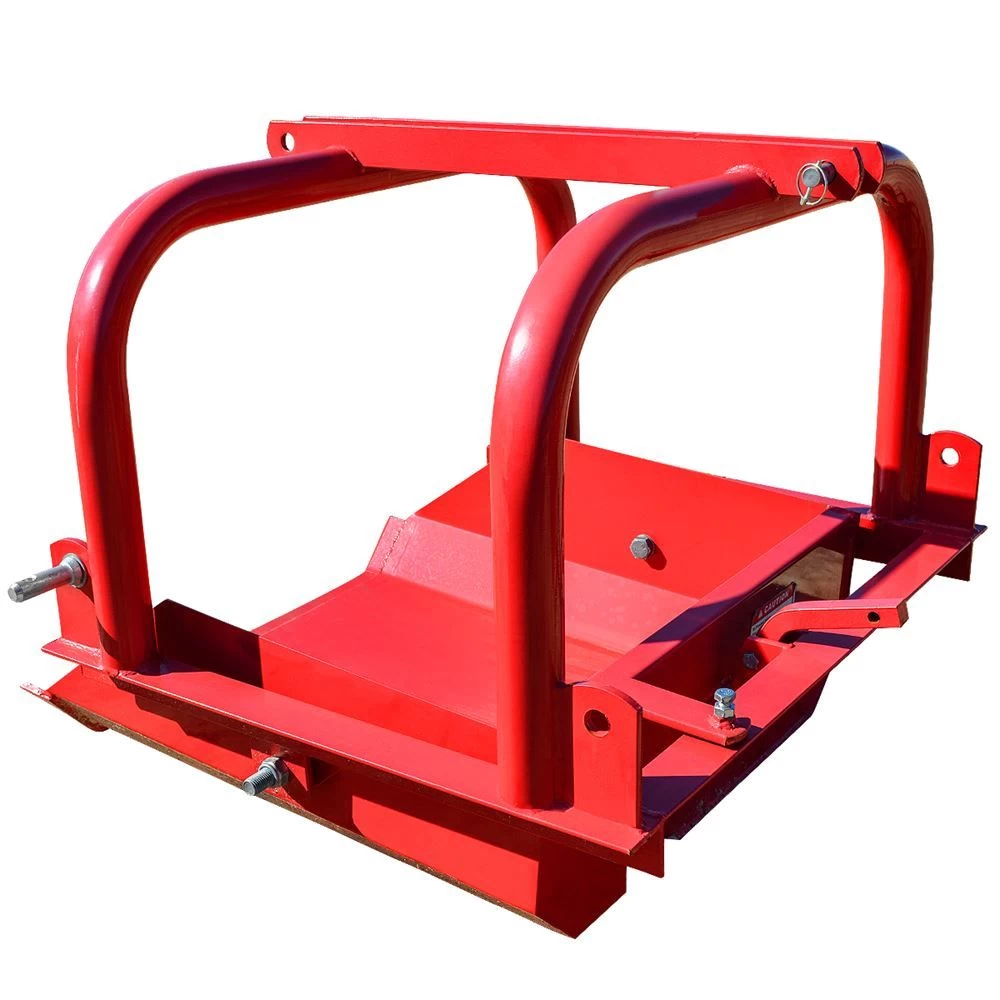

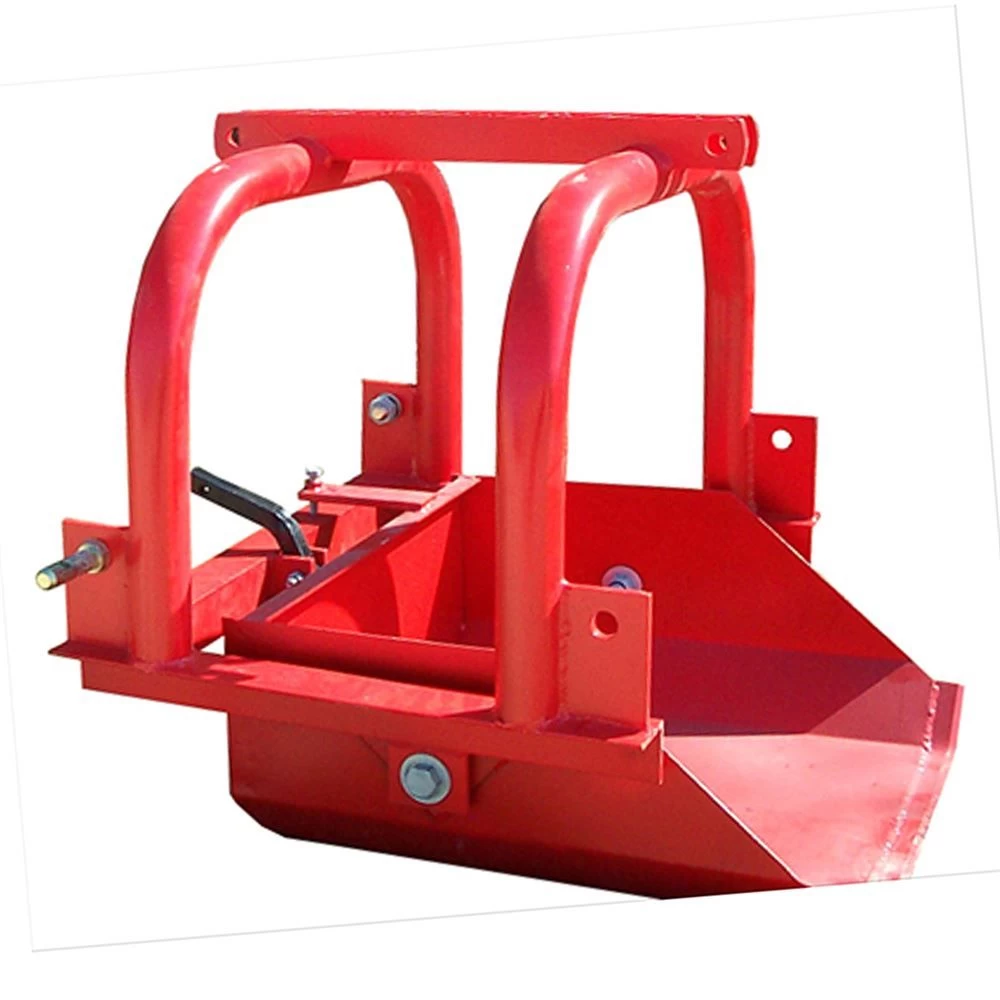

3-Point Dirt Scoop, 30 Inches

The dirt scoop frame construction is made from reinforced 2-3/8 inch tubular steel frame and 2-1/4 inch angle iron. The bucket dimensions are 30 inches wide by 25 inches deep by 10-1/2 inches high. The bucket capacity is 4.5 cubic feet; however, based upon the composition of the soil or material being moved, it can handle up to 6 cubic feet.

The bucket balances on the center mounted frame bushing for easy dumping. The bucket pin size is 7/8 inch. The beveled cutting edge is 30 inches long by 2-1/2 inches wide by 5/16 inches thick. The recommended tractor HP for this scoop is 15 to 35. The scoop has Category 1 hitch pins installed. Additionally, the bucket is equipped with a leveling screw to adjust to your needs. There is a manual trip lever that a rope can be attached to and actuated by hand.

Specifications:
• 3-point dirt scoop
• Cutting edge: 30 inches wide
• Reversible mounting
• 2-3/8 inch tubular steel frame with 2-1/4 inch angle iron
• Capacity: 4.5 to 6 cubic feet
• Category 1 hitch
• Weight: 225 lbs.

This 3-point dirt scoop is constructed of heavy duty steel and is designed to perform. Attach your tractor to the front of the dirt scoop and you can scrap or cut soil. Attach to the rear of the scoop to shovel dirt, gravel, and mulch, or just to carry a load.
