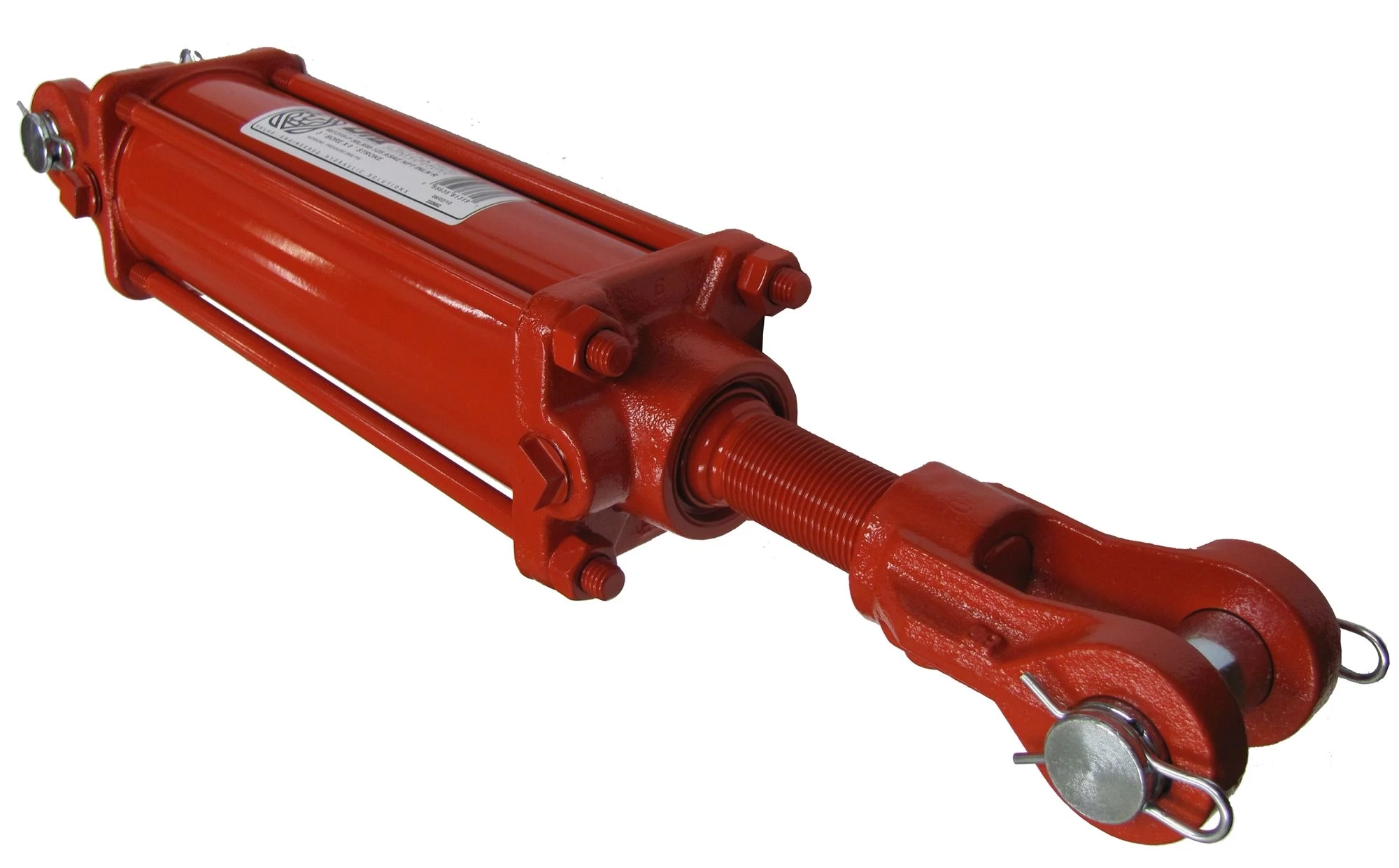

2 X 10 2500 PSI LX2500 CYLINDER

– 2500 PSI sealing kits for leak free performance
– Double ported NPT base ends for simple assembly
– Chrome plated shaft provides extended cylinder life in demanding applications
– High quality ductile iron castings provide durability and the ability to handle high shock load applications
– Precision-finished skived and burnished heavy wall steel tubing for extended seal and cylinder life
– Heavy-duty, torqued and self-locking piston nut holds piston firm under high-cycle loading
– Heavy Duty Ductile Iron Rod Clevis
– High-Tensile Steel, Zinc Plated Pins & Cotter Pin Retainers
– Threaded Shaft (on ASAE cylinders)
– High Tensile Steel Tie-Rods
– High quality red paint finish

– Maximum Shock Rating – 5,000 PSI
– Rod Size – 1.13 in.
– Stroke x Diameter – 2 x 10
– Working Pressure – 2,500 PSI
