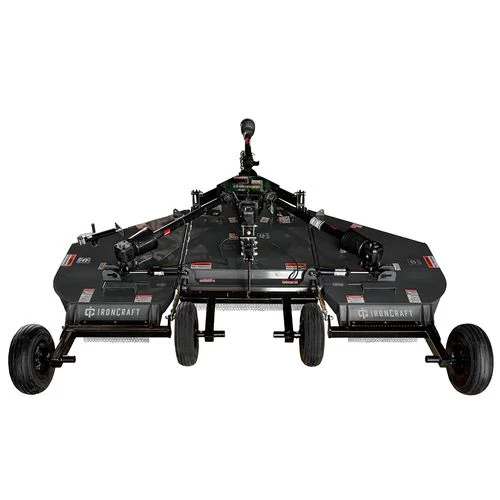

12′ Flex Wing Rotary Cutter Model 2512

This flex-wing cutter has a smooth easy to clean top deck to prevent debris buildup. This cutter comes with a slip clutch that protects the drive lines and the gearbox from becoming damaged. This rotor cutter comes equipped with standard safety items that include driveline shields, clutch shields, chain discharge shields, and towing chains.

Specifications

• Flex-Wing Rotary Cutter
• Model 2512
• 144″ cutting width / 151″ overall width
• Cut height: 1-1/2″-12″
• Uses 3 spindles
• Equipped with a slip clutch to protect from damage to the gearbox / drive lines
• Blade tip speed: 15.6 FPM
• Blade overlap: 6″
• Deck thickness: 10 gauge
• Deck height: 11″
• Splitter gearbox PWR rating: 175 HP
• Input PTO: ASAE Cat 5 constant velocity
• Wing drive PTO: ASAE Cat 4 with slip clutch
• Single spring suspension
• Weight: 2630 lbs.
• Cuts grass, weeds, and brush up to 2″ in diameter
• Standard tow chains
• For replacement blades:
•         Use quantity 2 of #122451for the center section,
•         Use quantity 2 of #122450 for the left section
•         Use quantity 2 of # 123724 for the right-wing
• For replacement blade bolts, use #49330 (qty one per blade)
• Gearbox 540 RPM
• Grade 2, 1/2″ x 2″ shear bolt
• 6″ x 9″ laminated wheels
• Weight: 2,630 lbs.
• Additional chains can be ordered from Agri Supply Office from vendor

This model 2512 flex-wing rotary cutter is designed for compact tractors as small as 35 HP. This rotary cutter will cut medium-duty applications such as grass, weeds, and brush up to 2″ diameters.
